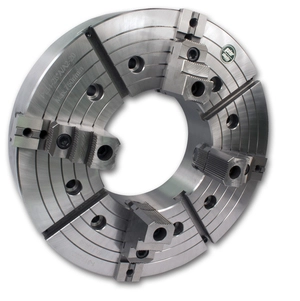

1-317-2520 New 4-Jaw Independent HD Oil Country Chucks, Steel, 2pc. Jaws 25" A2-20

Chuck Diameter.................25"
RPM Max........................850
Weight.........................649
B..............................16.2510
D..............................18.2520
E..............................M24x3
F..............................1.5000
G..............................6.1000
H..............................6.5790
I..............................3.5710
K..............................0.8860
L..............................2.9530
N..............................0.8660
Spindle Nose...................A2-20
Thru Hole......................C 12.55
Top Jaw Mounting Bolts.........7/8"-9
Operating Screw Thread Size....Tr50x8 LH
Clamping Capacity Min.-Max.....3.94-24.80

PEI Series 4 Jaw Independent Oil Country Chucks with Large Thru-Hole
Forged Steel Body, Extra Heavy Duty with A2 Mounts.
Our chucks are produced in a private factory in China.
