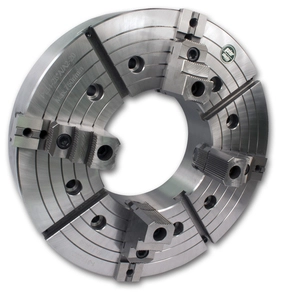

1-317-2015 New 4-Jaw Independent HD Oil Country Chucks, Steel, 2pc. Jaws 20" A2-15

Chuck Diameter..............................20"
RPM Max.....................................1,000
Weight......................................415 Lbs.
B...........................................11.2510
D...........................................13.0000
E...........................................M24x3
F...........................................1.3400
G...........................................5.7100
H...........................................6.0670
I...........................................2.9810
K...........................................0.8860
L...........................................2.3620
N...........................................0.7480
Spindle Nose,...............................A2-15
Thru Hole C.................................8.00
Top Jaw Mounting Bolts......................3/4"-10
Operating Screw Thread Size.................Tr44x8 LH
Clamping Capacity Min.-Max..................1.77-19.68

PEI Series 4 Jaw Independent Oil Country Chucks with Large Thru-Hole
Forged Steel Body, Extra Heavy Duty with A2 Mounts.

Our chucks are produced in a private factory in China.
