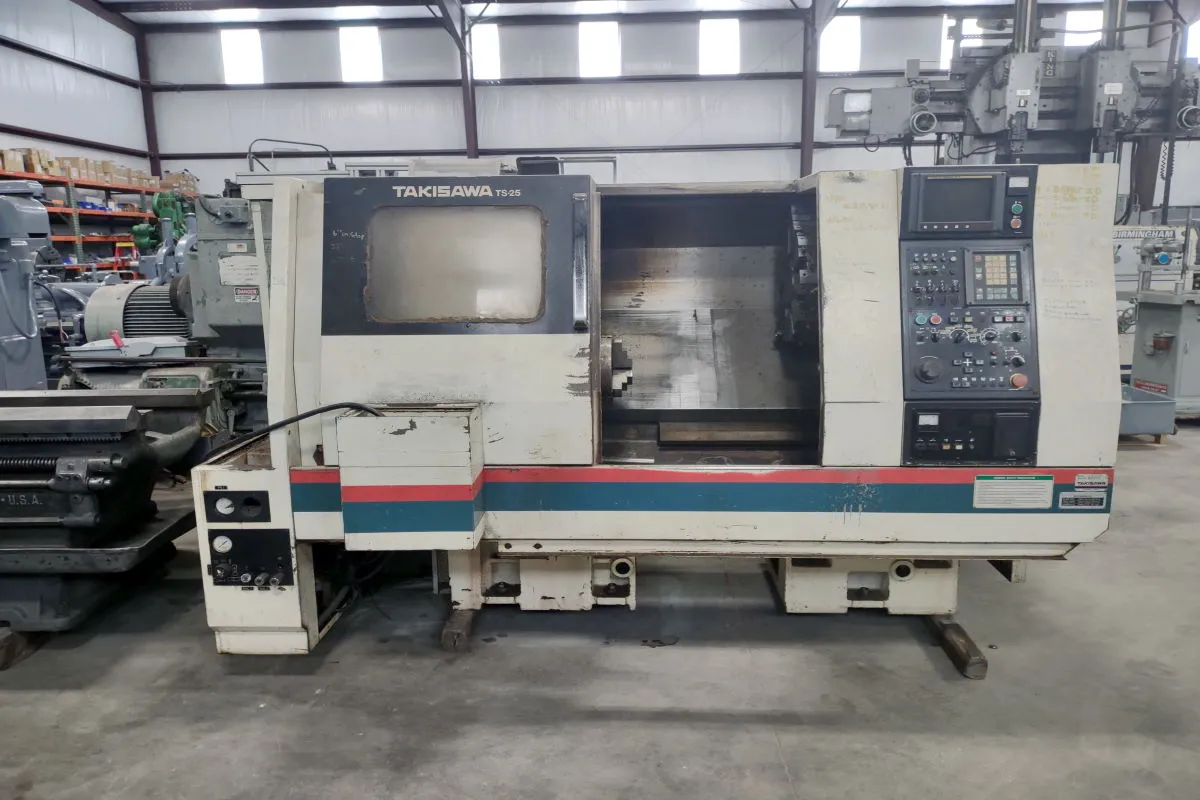

20.4" X 24" Takisawa CNC Slant Bed Lathe Model TS-25 With Fanuc OT Control

Make: TAKISAWA
Model:.............................................TS-25
Control:...........................................FANUC OTC

Maximum Swing.....................................20.47
Maximum Turning Diameter..........................13.77"
Chuck Diameter....................................10"
Maximum Length....................................22"
Spindle Speed.....................................4,000 RPM
Spindle Bore......................................2.9
Spindle Nose......................................A2-8
Turret Station....................................10 Station
Tail Stock Quill Travel...........................3"
Tail Stock Quill Diameter.........................6"
Taper.............................................MT #4
Coolant Tank......................................Yes

Note: Machine was just removed from service.
Being sold as is. Machine can be cleaned and painted for an extra charge.
