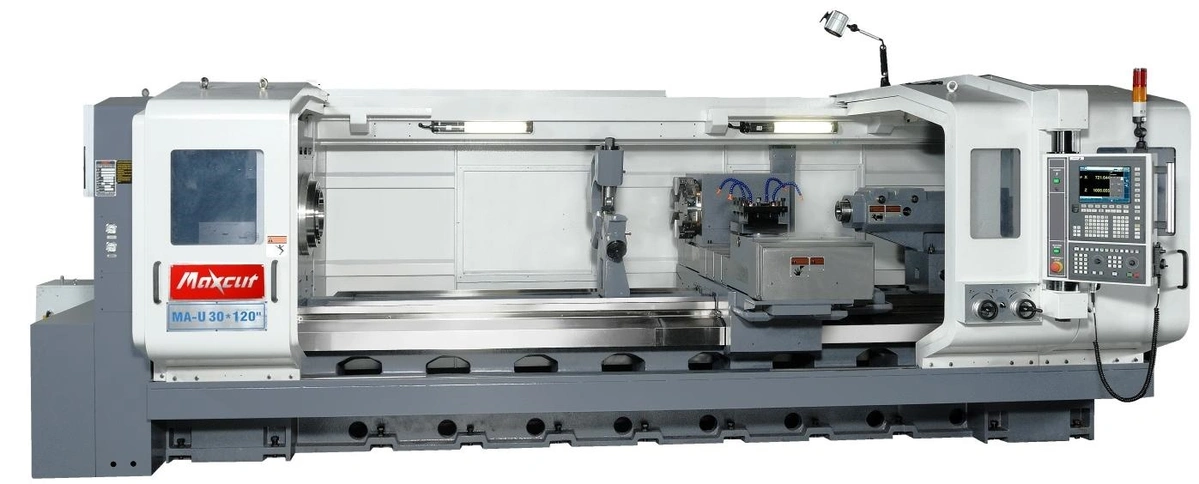

L&L Heavy Duty Hollow Spindle CNC Lathe Model MA 33" X 120"-12"

Control
FANUC 0i-TD control with 10.4" COLOR TFT-LCD SCREEN
MACHINE SPECIFICATIONS:
CAPACITY
Maximum swing 840mm (33”)
Maximum swing over cross slide 400mm (15.74”)
Center height 455m (17.91”)
Bed width 560mm (22”)
Bed way 3 V ways + 1 flat way
SPINDLE
Spindle motor 22/33kW (29.5/44.2 hp.)
Spindle bore 255mm (12”)
Spindle nose A2-15
Spindle speed range from 5 to 700 rpm
Spindle center MT#6
TURRET
Type hydraulic
Stations 8
Turning tool size 32mm (1.25”) square
TRAVEL
X axis 400mm (15.74”) on 40mm (1.57“) ball screw
Z axis 2000mm (78.74”) on 63mm (2.48“) ball screw
FEED RATE
X axis rapid feed rate 6m per minute (236” per minute)
Z axis rapid feed rate 6m per minute (236” per minute)
FEED MOTORS
X axis 5.2kW (7 hp.)
Z axis 5.2kW (7 hp.)
TAILSTOCK
Tailstock movement type drag by carriage
Quill movement type manual
Quill travel 200mm (7.9”)
Quill diameter 125mm (4.92”)
Quill live center MT#6
GENERAL
Coolant pump pressure 5bar (72.5 psi)
Hydraulic pump motor 1.5kW (2 hp.)
Lubrication pump: carriage pressure relief electric lubricator 25W (0.03 hp.)
Lubrication pump: spindle 186W (¼ hp.)
Machine weight 11750kg (25,850 lbs.)

STANDARD + INCLUDED EQUIPMENT:
Fagor 8060 control
4-step gear change spindle for heavy duty turning
24” American 4-jaw chuck - direct mount - two piece jaw type
25” Bison 3-jaw scroll chuck - direct mount - two piece jaw type
special designed C-type steady rest with 30 to 300mm capacity - quill diameter 80mm full enclosure
front chip tank and rear chip conveyor + one chip cart
automatic lubrication system
coolant system
air conditioner for electric cabinet
operation manual
electric manual
control manual
parts list
halogen lights
tool box & tools
spindle sleeve, spindle center, tailstock center
anchor bolts, leveling pads, leveling bolts
