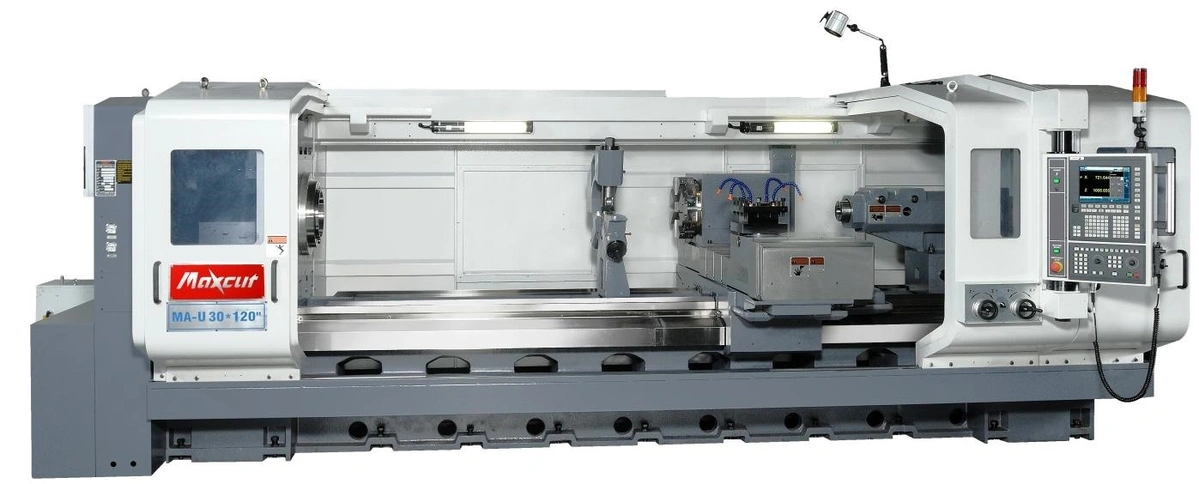

L&L Heavy Duty Hollow Spindle CNC Lathe Model MA 33" X 120"-10"
Have one to sell?
ConditionNew
1 available
New
High Light Features
Heavy duty tailstock and quill
125mm quill diameter
High/Low gear quill feed BY HAND WHEEL Programmable tailstock positioning. One shot lubrication
Steady Rest
Special designed C-type steady rest Capacity: Dia. 30-300mm
Quill: Dia. 80mm
Optional Heavy duty Boring bar holder 6” boring bar for heavy duty job Different size Sleeve is available
Hydraulic 4 way, VDI turret
4 way VDI turret for Heavy duty boring work for quick change tool holder
Control
FANUC 0i-TD control with 10.4" COLOR TFT-LCD SCREEN
MACHINE SPECIFICATIONS:
CAPACITY
Maximum swing 840mm (33”)
Maximum swing over cross slide 400mm (15.74”)
Center height 455m (17.91”)
Bed width 560mm (22”)
Bed way 3 V ways + 1 flat way
SPINDLE
Spindle motor 22/33kW (29.5/44.2 hp.)
Spindle bore 255mm (10”)
Spindle nose A2-15
Spindle speed range from 5 to 700 rpm
Spindle center MT#6
TURRET
Type hydraulic
Stations 8
Turning tool size 32mm (1.25”) square
TRAVEL
X axis 400mm (15.74”) on 40mm (1.57“) ball screw
Z axis 2000mm (78.74”) on 63mm (2.48“) ball screw
FEED RATE
X axis rapid feed rate 6m per minute (236” per minute)
Z axis rapid feed rate 6m per minute (236” per minute)
FEED MOTORS
X axis 5.2kW (7 hp.)
Z axis 5.2kW (7 hp.)
TAILSTOCK
Tailstock movement type drag by carriage
Quill movement type manual
Quill travel 200mm (7.9”)
Quill diameter 125mm (4.92”)
Quill live center MT#6
GENERAL
Coolant pump pressure 5bar (72.5 psi)
Hydraulic pump motor 1.5kW (2 hp.)
Lubrication pump: carriage pressure relief electric lubricator 25W (0.03 hp.)
Lubrication pump: spindle 186W (¼ hp.)
Machine weight 11750kg (25,850 lbs.)
STANDARD + INCLUDED EQUIPMENT:
Fagor 8060 control
4-step gear change spindle for heavy duty turning
24” American 4-jaw chuck - direct mount - two piece jaw type
25” Bison 3-jaw scroll chuck - direct mount - two piece jaw type
special designed C-type steady rest with 30 to 300mm capacity - quill diameter 80mm full enclosure
front chip tank and rear chip conveyor + one chip cart
automatic lubrication system
coolant system
air conditioner for electric cabinet
operation manual
electric manual
control manual
parts list
halogen lights
tool box & tools
spindle sleeve, spindle center, tailstock center
anchor bolts, leveling pads, leveling bolts
High Light Features:
Heavy duty tailstock and quill
125mm quill diameter
High/Low gear quill feed BY HAND WHEEL Programmable tailstock positioning
One shot lubrication
Steady Rest
Special designed C-type steady rest Capacity: Dia. 30-300mm
Quill: Dia. 80mm
Optional Heavy duty Boring bar holder 6” boring bar for heavy duty job Different size Sleeve is available
Hydraulic 4 way, VDI turret
4 way VDI turret for Heavy duty boring work for quick change tool holder
Cross slide is designed for Double turret
Long cross slide built for 2 turrets
4 or 8 position hydraulic turret in front
4 way hydraulic turret or boring bar holder in back
Quick Change Manual Tool Post Optional Manual Quick change tool post for more tool setups
250 tool offsets built in Fagor 8060 control
Heavy duty head stock and spindle
4 step gear on headstock
42000NM/31000Ft-Lb at low gear
High quality gears are made of nickel Chrome
Heavy duty bed structure
One piece solid bed frame
24” wide, heavy duty structure with triple V bed Well-designed chip flowing angle for easy chip and coolant management
