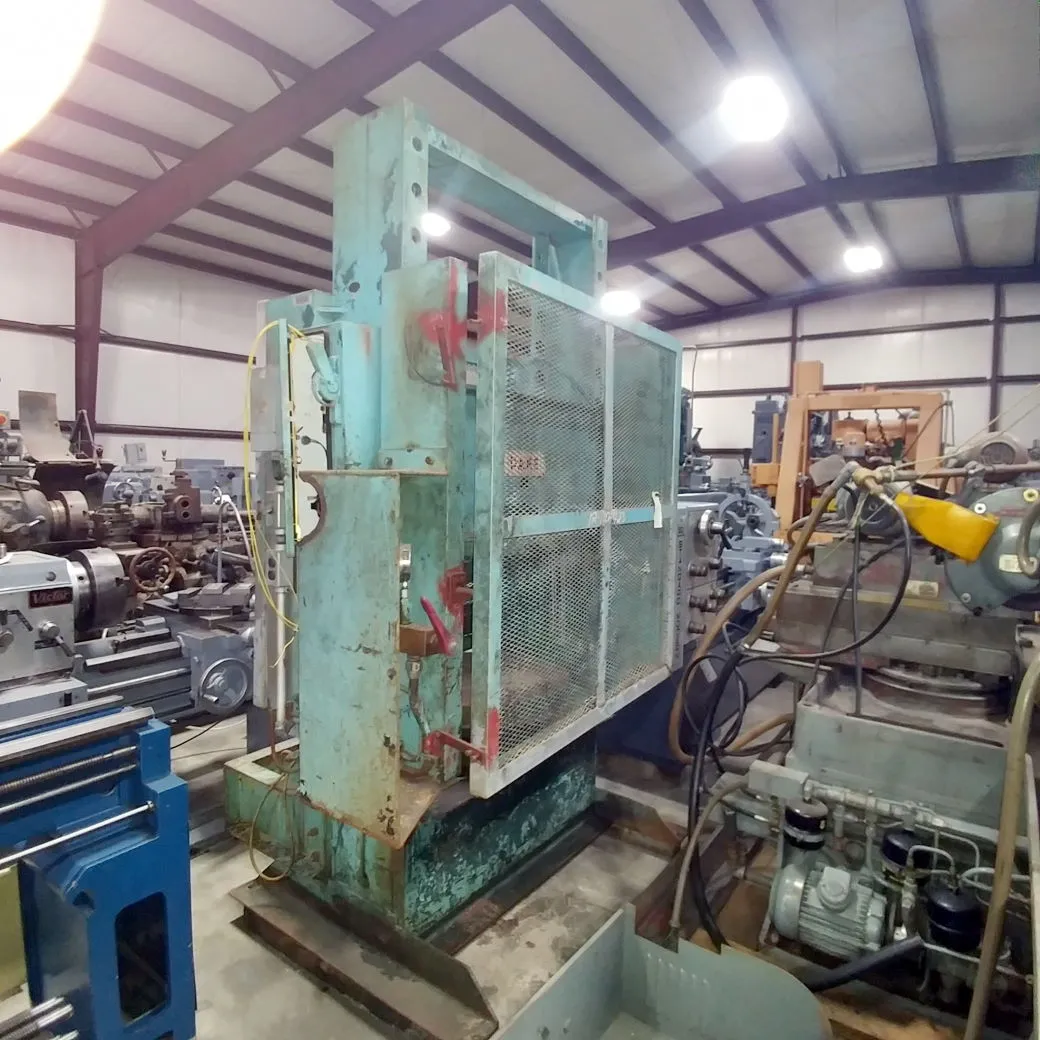

Dake 150 Ton H Frame Wheel Press

150 Ton Dake H-Frame Wheel Press
Capacity 150 tons

Ram speed advance 2-3/4 IPM
Ram speed return Gravity
Width between uprights 36"
Maximum daylight 36"
Stroke 15"
Ram travel 12”
Head channel travel 15"
Platen diameter 25"
Overall height 80"
Floor space L-R 57" x F-B 43"
Weight 3,400 lbs.
Horsepower 2
Voltage220/440 V, 3-Phase
Steel Frame
Removable Table Pins
Upper Movable Head Channel Crank
Metal Guarding
Pressure Gauge
Note: Machine will be cleaned, painted and cycled.
Cylinders will be rebuilt and reconditioned. Electric's will be cleaned up or replaced.
