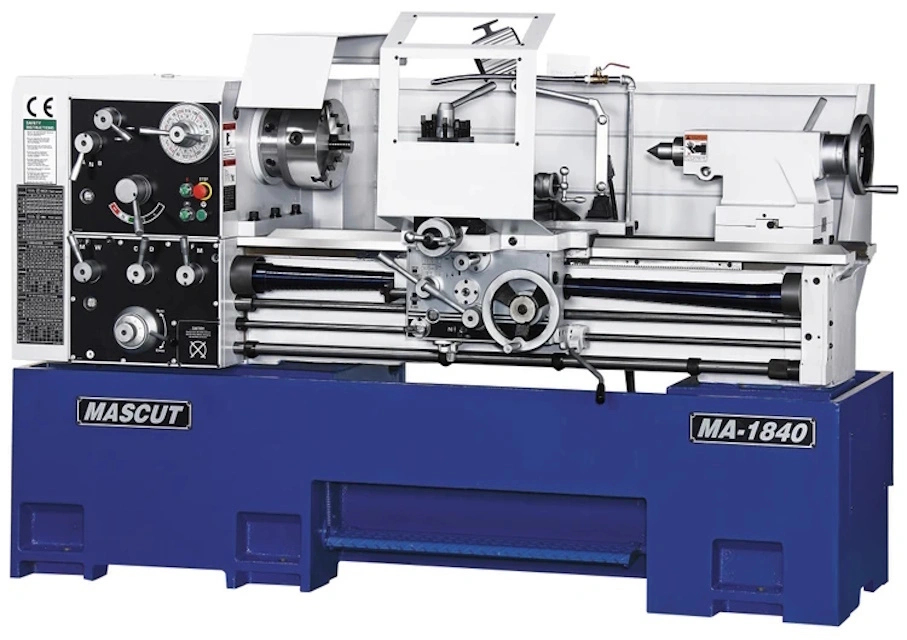

18" X 40" New Webb Engine Lathe Model MA-1840

18" X 40" New Webb Engine Lathe With Gap
Swing Over Bed Ways.....................................18.1"
Swing Over Cross Slide..................................11.4"
Swing In Gap............................................25.1"
Center Height...........................................9.05"
Center Distance.........................................40"
Spindle Hole............................................2"
Cross Slide Travel......................................11"
Compound Rest Travel....................................4.7"
Spindle Speeds..........................................39 To 2,800 Rpm's
Spindle Nose............................................D-1-6
Feeds Cross.............................................0.03 To 0.44 I.P.R.
Feeds Long..............................................0.06 To 0.88 I.P.R.
Threads Inch............................................4 To 56 T.P.I.
Threads Metric..........................................0.05 To 7 MM
D.P.....................................................8 To 112 T.P.I.
Module..................................................0.05 To 3.5 T.P.I.
Tail Stock Quill Diameter...............................2.9"
Tail Stock Quill Travel.................................6.6"
Tail Stock Taper........................................# 5 Morse
Main Motor..............................................7.5 Hp. 220 / 440/
Machine Dimension.......................................110" L X 4'W
Machine Height..........................................67"
Weight..................................................4,960 Lbs.
Foot Brake..............................................Yes
Coolant Pan.............................................Yes
Thread Dial.............................................Yes
Hardened And Ground Ways................................Yes

Machine Options: Price are not Included In Base Price.
All prices and specifications are subject to change without notice:
MA 18” Series Upgrade to 10 HP..........................$950.00
MA 18” Inverter Head with CSS and PLC for 7.5 HP........$5,940.00
MA 18” Series Steady Rest Roller type...................$790.00
MA 18/21” Rapid Traverse Motor on Apron.................$1,890.00
Follow Rest.............................................$575.00
5 Position Micrometer Carriage Stop.....................$490.00
Taper Attachment........................................$1,990.00
Installation of taper attachment........................$450.00
Quick Change Tool Post And 4 Tool Blocks................$1,125.00
Full Length Splash Guard 40” and 60” Centers Machine....$595.00
Full Length Splash Guard 80” and 120” Centers Machine...$795.00
Digital Read Outs: Acu-Rite and Newall
Newall 2 Axis Digital readout System ...................$4,350.00
Chucks:
3-JAW 10” D-1-6 CAM LOCK MOUNT..........................$1,090.00
3-JAW 12” D-1-6 CAM LOCK MOUNT..........................$1,590.00
4-JAW 16” D-1-6 CAM LOCK MOUNT..........................$2,490.00
Gator Chucks All With 2 Piece Jaws
Chuck Size 12" 3-Jaw D-1-6 Cam Lock Mount...............$2,490.00
Chuck Size 16" 4-Jaw D-1-6 Cam Lock Mount...............$2,690.0
Chuck Size 12" 3-Jaw D-1-6 Cam Lock Mount Steel Body....$3,250.00
Chuck Size 12" 4-Jaw D-1-6 Cam Lock Mount ..............$1,890.00
16” Face Plate D-1-6....................................$475.00

Voltage:
Rewire to 440V..........................................$450.00
All prices and specifications are subject to change without notice:

Freight Estimate From California........................$2,350.00
