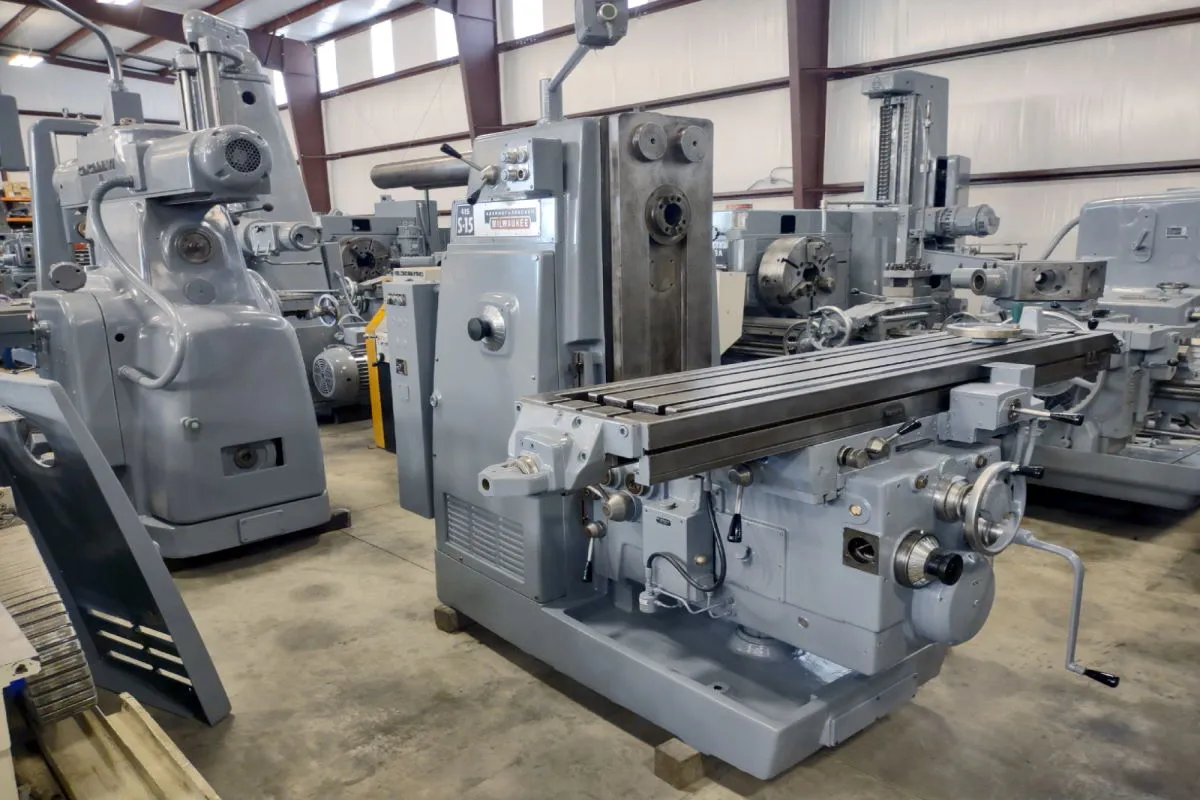

15" X 76" Used K & T Horizontal Milling Machine Model 415-S15
Table Size..........................................15" X 76"
Table Travel........................................42"
Table Cross Travel..................................14"
Spindle Taper.......................................50"
Knee Travel Up & Down...............................16"
Spindle Speeds......................................20 To 2,000 Rpm's
Spindle To Table Min / Max..........................6-3/4" / 24-1/2"
Saddle And Table Feeds..............................3/8 To 90 I.P.M.
Rapids Long. & Cross................................150 I.P.M.
Rapids Knee.........................................37-1/2 I.P.M.
Main Motor..........................................15 Hp. 220 / 440 / 3
Feed Drive..........................................3 HP.
Coolant Pump........................................1/4 HP.
Floor Space.........................................R-L 90" X F-B 96"
Height..............................................84"
Weight..............................................8,500 Lbs.
Coolant.............................................Yes
Note: Machine has been cleaned, painted and cycled.
