New Webb Champ 18"X68" Table Bed Type Vertical Milling Machine
New Machinery, Vertical MillChamp “CBM Series” Bed Mills
Features: Inverted Spindle Drive “EVS Heads”, and Precision Ball
Screws in each Axis. The Heavy-Duty Frames are Certified Meehanite
and all Sliding Surfaces are Turcite Coated.
Although these machines are manual, they are CNC Ready. Machines
include both Manual Handwheels on each axis as well as Servo
Controlled via Electronic Switches. The quality of our Champ Mills is
un-matched and each is built 100% in Taiwan.
Table-W | 18" |
Table-L | 68" |
Travel-Long | 50" |
Travel-Cross | 22" |
Power | 5 hp |
RPM | 4,200 RPM |
Taper | 40 |
Dimensions | R-L 73 X F-B 76"X Height 88" |
Weight | 6,000 Lbs. |
Catalog Specifications:
Working Table Surface 18"X68"
T-Slots 5/8" X 3" X 2.56"
Longitudinal Travel X Axis 50"
Vertical Travel Z Axis 22"
Cross Travel Y Axis 23.5"
Spindle Taper #40
Spindle Motor 7.5 Hp. Mitsubishi Inverter Drive
Spindle Speeds 4,000 Rpm's
Quill Feeds 3 Steps .0017..0032 & .0054 I.P.R.
Quill Travel 5.5
Spindle Center To Column Front 22.6"
Spindle Nose To Table Top 3.93 To 23.62"
Floor Space 73" X 76"
Height 88"
Weight 6,000 Lbs.
Optional:
Digital Readout System :
Newall 2 Axis......................................$3,665.00
Newall 3 Axis......................................$5,400.00
Maxi Torque Power Tool Lock 40 Taper Installed.....$1,195.00
8" Inch Rotary Table / vertical and Horizontal.....$585.00
10"Inch Rotary Table / vertical and Horizontal.....$1,195.00
12"Inch Rotary Table / vertical and Horizontal.....$1,395.00
Vise 6" Precision Machinist Vise Best Quality......$780.00
CNC Control Option.................................$18,000.00

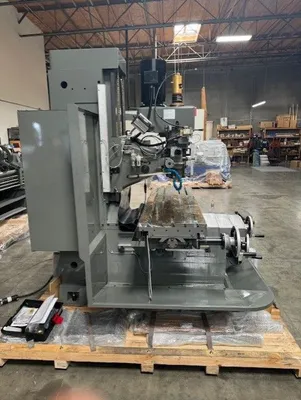

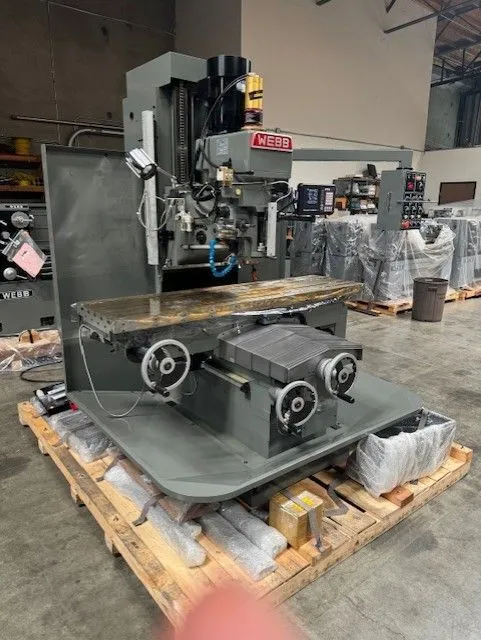

Note: Pictures shows the CNC version, the base machine is the same.
WEBB CBM-50QIF
18″ x 68″ Table
X-50, Y-22, Z -23.5, Travel
Standard accessories:
Inverter spindle motor
Chip Pan And Power Drawbar
Precision ball screws for 3 axis
Automatic lubricate system
Digital readout system
DC servo driving system for 3 axis
Metal telescoping cover for Y axis
Quartz work light
Adjustment Tools and Manuals
Pendant Control Arm For All Function
Spindle On / off, Coolant, Adjustable Separate X,Y,Z, axis feed rate dials, Precision ground ball screws on all 3 Axis.
Manual Hand Wheels On X,Y And Z, Axis.
Coolant System, Chip Tray, Back Splash Guard, Halogen Work Lamp.
Metal Telescoping front way guard Y axis
Electric Control Cabinet
