New Webb Champ 13"X59" Table Bed Type Vertical Milling Machine
Have one to sell?
ConditionNew
New
New Webb Champ 13"X59" Table Bed Type Vertical Milling Machine
Champ “CBM Series” Bed Mills Features:
Inverted Spindle Drive “EVS Heads”, and Precision Ball Screws in each Axis.
The Heavy-Duty Frames are Certified Meehanite and all Sliding Surfaces are Turcite Coated.
Although these machines are manual, they are CNC Ready. Machines include both Manual
Handwheels on each axis as well as Servo Controlled via Electronic Switches.
The quality of our Champ Mills is un-matched, and each is built 100% in Taiwan.
WEBB CBM-40QIF
13″ x 59″ Table
X-40", Y-21", Z -22", Travel
Standard accessories:
Inverter spindle motor
Chip Pan And Power Drawbar
Precision ball screws for 3 axis
Automatic lubricate system
Digital readout system
DC servo driving system for 3 axis
Metal telescoping cover for Y axis
Quartz work light
Adjustment Tools and Manuals
Pendant Control Arm For All Function
Spindle On / off, Coolant, Adjustable Separate X,Y,Z, axis feed rate dials,
Precision ground ball screws on all 3 Axis.
Manual Hand Wheels On X,Y And Z, Axis.
Coolant System, Chip Tray, Back Splash Guard, Halogen Work Lamp.
Metal Telescoping front way guard Y axis
Electric Control Cabinet
Catalog Specifications:
Working Table Surface.................................13"X59"
T-Slots...............................................5/8" X 3" X 2.56"
Longitudinal Travel X Axis............................40"
Vertical Travel Z Axis................................21"
Cross Travel Y Axis...................................22"
Spindle Taper.........................................#40
Spindle Speeds........................................4,000 Rpm's
Quill Feeds 3 Steps...................................0.0017,0.0032 & 0.0054 I.P.R.
Quill Travel..........................................5.5
Spindle Center To Column Front........................22.6"
Spindle Nose To Tabletop..............................3.93 To 23.62"
Spindle Motor.........................................5 Hp. Mitsubishi Inverter Drive
Floor Space...........................................R-L 73 X F-B 76"
Height................................................88"
Weight................................................5,500 Lbs.
Pendent Control Arm For All Functions, Spindle
On/Off, Coolant.......................................Yes
3 Set Of Heavy Duty Mitsubishi 1.5 KW
Servo Driver Motors...................................Yes
Precision Ground Ball Screws All 3 Axis...............Yes
Hand Wheel On X, Y, And Z Axis for Manual Movement....Yès
Coolant System Chip / Coolant.........................Yes
Quartz Work Light.....................................Yes
Auto Lube.............................................Yes
Optional:
Digital Readout System:
Newall 2 Axis NMS 800 Table And Saddle................$4,975.00 Installed
Mitutoyo Digital Quill Scale..........................$950.00 Installed
Maxi Torq Power Draw Bar..............................$1,275.00 Installed
8" Inch Rotary Table / vertical and Horizontal........$985.00
10"Inch Rotary Table / vertical and Horizontal........$1,395.00
12"Inch Rotary Table / vertical and Horizontal........$1,695.00
16"Inch Rotary Table / vertical and Horizontal........$3,590.00
Vise 6" Precision Machinist Vise Best Quality.........$880.00
ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

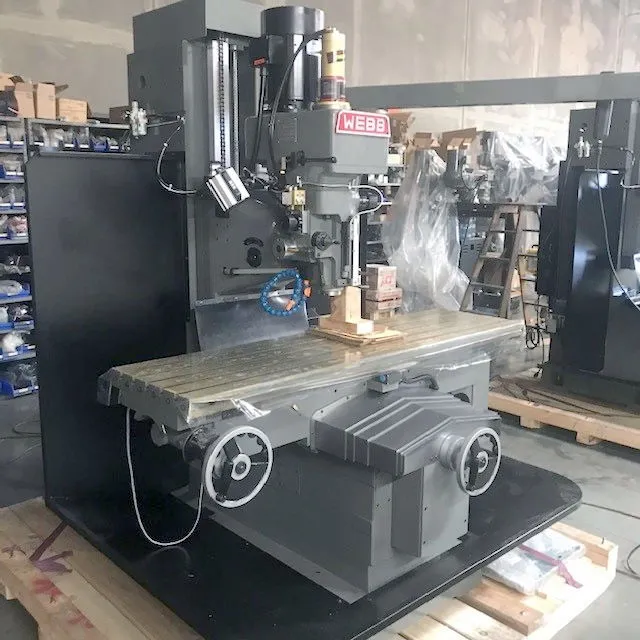

Note: Pictures are of a machine they recently shipped.
Note: Pictures show the CNC version the base machine is the same.
