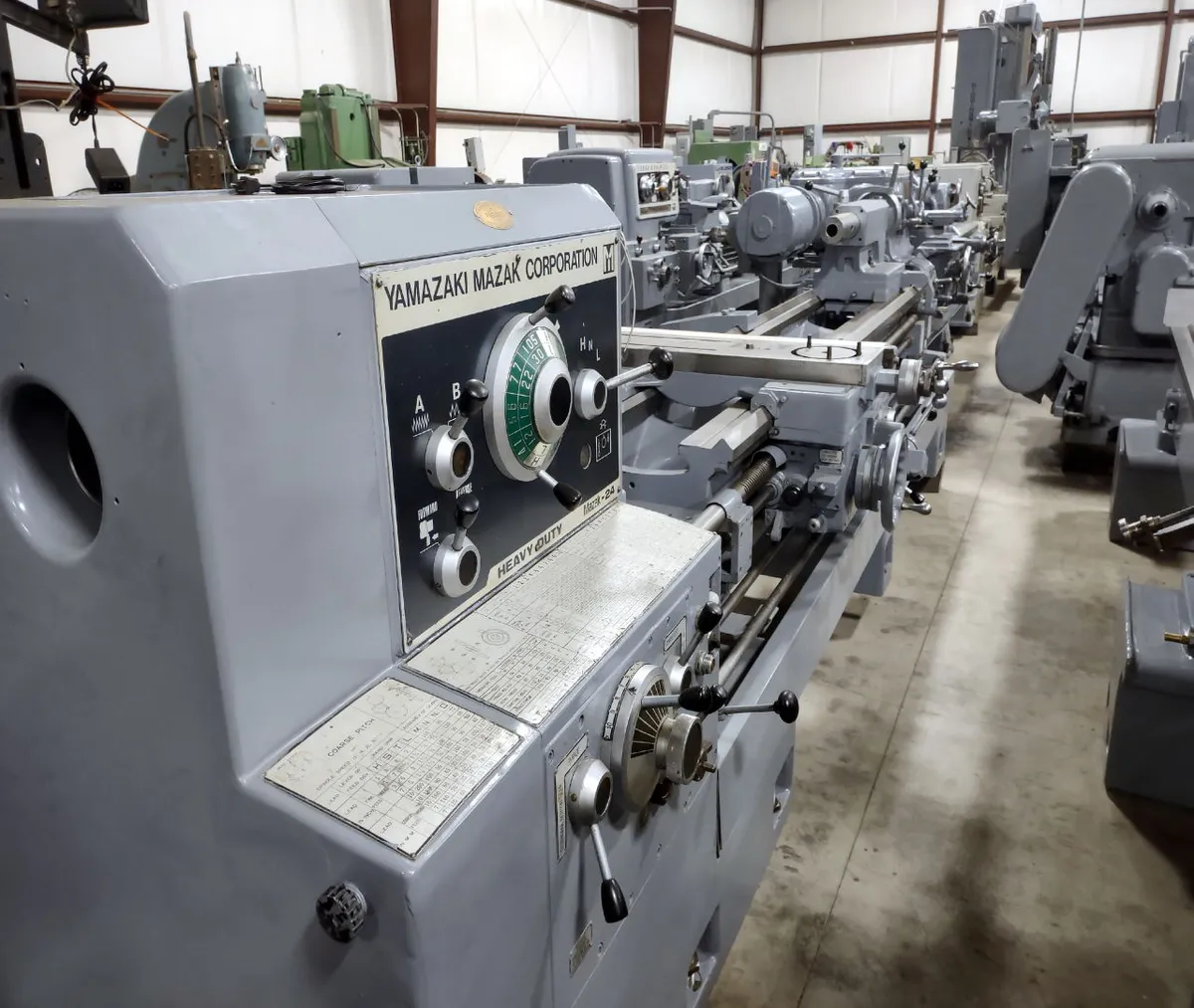

24" x 100" Mazak Heavy Duty Manual Engine Lathe

CATALOGUE SPECIFICATIONS:
Swing over the Bed...................................24"
Swing over the Cross Slide...........................14.125"
Swing In Gap.........................................35"
Distance between Centers.............................100"
Width of Bed.........................................22"
Chuck Size...........................................21" 4-jaw
Spindle Nose.........................................D1-11
Spindle Bore.........................................4-1/16"
Speeds Range (16)....................................8-1,200 RPM
Metric Threads (31)..................................1-14 mm
Inch Threads (70)....................................2-28 TPI
Taper in Tailstock...................................MT-6
Quill Diameter.......................................4"
Quill Travel.........................................8"
Steady Rest Roller Type (1)..........................9" Capacity
Main Motor...........................................20 HP
Machine Floor Space..................................R-L 180", F-B 72"
Machine Height.......................................60"
Approximate Machine Weight...........................16,200 Lbs.
Taper Attachment.....................................Yes
Coolant Pans & Pump..................................Yes

Condition: Very Good
Note: Machine has been cleaned, painted and cycled.
THe gap is missing along with the upper compound.

Optional:
Newall 2 Axis D.R.O System Installed................$6,450.00
New Gator 16" 3-Jaw Chuck...........................$2,946.00
New Aloris Type Tool Post And 5 Holders.............$1,450.00
