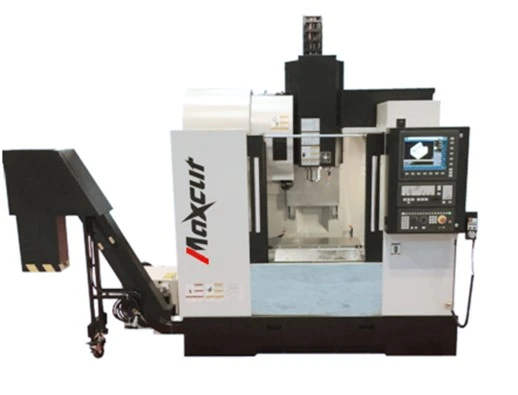

New MAXCUT VERTICAL MACHINING CENTER MCV-1830 With Fagor 8055 Control

STANDARD EQUIPMENT
Fagor 8055 control*

MACHINE SPECIFICATIONS:

TABLE
table size 900 x 410mm (35.43” x 16.4”)
distance between table and floor 820mm (32.28”)
table load capacity 350kg (770 lbs.)

TRAVEL
X axis 762mm (30”)
Y axis 457mm (18”)
Z axis 508mm (20”)
X/Y axis motor torque 2.84Nm (2 ft-lbs)
Z axis motor torque 8.34Nm (6.15 ft-lbs)
X/Y/Z axis rapid traverse 25m/minute (1000”/minute)
X/Y/Z axis maximum cutting feed rate 12.7m/minute (500”/minute)

SPINDLE
taper ISO#40
bearing inside diameter 60mm (2.36”)
maximum speed 10,000 rpm
spindle center to guide ways 480mm (18.9”)
spindle nose to table top 102 - 602mm (4” - 24”)
motor 5.5/7.4kW (7.5/10 hp.)

AUTOMATIC TOOL CHANGER
number of tool pockets 24
tool taper BT #40 or Cat #40
tool select by shortest path bi-directional
maximum tool diameter with adjacent empty pockets 130mm (5.12”)
maximum tool diameter with adjacent full pockets 89mm (3.5”)
maximum tool length 350mm (13.77”)
maximum tool weight 8kg (17.6 lbs.)

ACCURACY
positioning accuracy +/- 0.005mm (+/- 0.0002”)
repeatability 0.002mm (0.00008”)

DIMENSION
2200 x 2050 x 2500mm (86.6” x 80.7” x 98.5”)
weight 3630kg (7986 lbs.)
electrical power requirement 400 volt

STANDARD EQUIPMENT
Fagor 8055 control*
10000 RPM CAT 40
10 INCH 4TH AXIS INSTALLED
24 position arm-type tool changer
20bar through the spindle coolant system
belt type lift-up chip conveyor
rigid tapping
one piece box type base with heavily ribbed cast iron components
precision ground ball screws
automatic lubrication with low lubrication alarm
210l coolant tank
coolant system with check valve
wash down coolant flush
linear way system ensures high rapid / high accuracy traverse at all the axes
full enclosure & heavy metal guarding with removable side doors
large fully ground work table with four (4) t-slots
telescopic way covers
low voltage circuit system
heat exchanger
