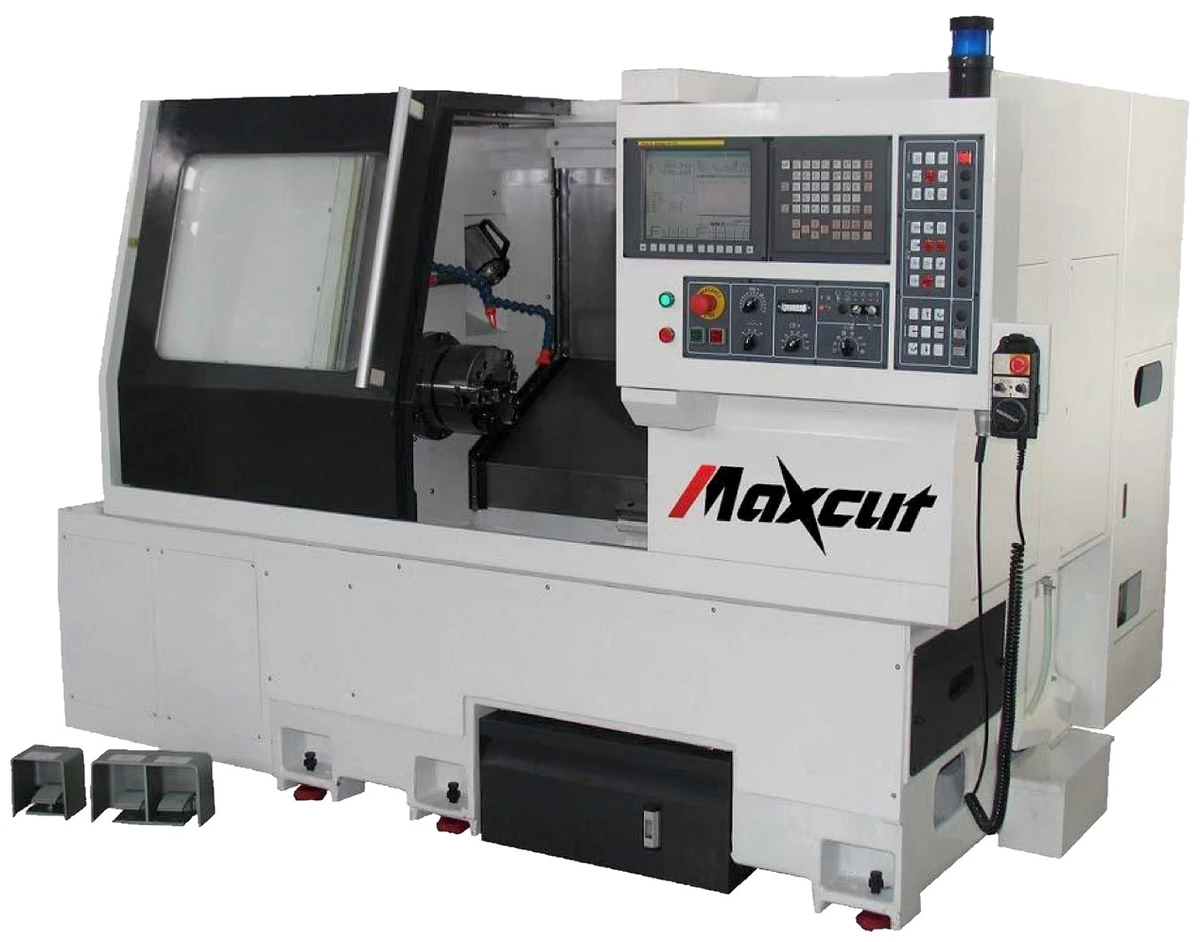

New Max Cut CNC Slant Bed Lathe Model MTC25-1020 20"X20"
Have one to sell?
ConditionNew
1 available
New
New Max Cut CNC Slant Bed Lathe Model MTC25-1020 20"X20"
Control Fagor 8055
MACHINE SPECIFICATIONS:
CAPACITY
swing over bed 508mm (20”)
swing over cross slide 360mm (14.17”)
maximum turret diameter with turret 369mm (14.5”)
maximum turning length with chuck 508mm (20”)
bar capacity 65mm (2.56”)
TRAVEL
X axis 215mm (8.46”)
Z axis 514mm (20.25”)
SPINDLE
spindle nose A2-6
spindle hole diameter 65mm (2.56”)
maximum spindle speed 4000 rpm
spindle taper 1/20
spindle motor 11kW (15 hp.)
hydraulic chuck diameter 10”
maximum hydraulic pressure 30kgf/cm2 (450 psi)
TOOL TURRET
turret type LS-200 hydraulic
tool stations 12
boring bar diameter 32mm (1.26”) diameter
turning tool shank 25mm (1”) square
AXES
X/Z axis rapid feed rate 30m per minute (1181” per minute)
X/Z axis servo motor 11/6Nm (8.56 ft-lbs.)
ACCURACY
positioning accuracy +/- 0.01mm (+/- 0.0004”)
repeatability 0.005mm (0.0002”)
TAILSTOCK
tailstock quill diameter 65mm (2.56”)
tailstock travel 425mm (16.73”)
quill taper MT#4
quill travel 50mm (1.97”)
DIMENSIONS
length with chip conveyor x width x height 3280 x 1820 x 1680mm (130” x 72” x 67”)
weight 3200kg (7040 lbs.)
CONTROL FEATURES:
Fagor 8055 control*
8” hydraulic 3-jaw chuck with soft jaws
Renishaw manual tool setter
belt type chip conveyor
automatic part catcher
Portable handwheel
high pressure coolant system
auto lubrication system
work light
M30 program stop light
fully enclosed splash/chip guard with interlock safety device
tool set & box, level pads, operation manual & parts list
heat exchanger for electrical cabinet
tool holder package containing:
four (4) gib & spacer for 1” square shank o.d. cutting tool
one (1) facing tool holder for 1” square shank facing cutting tool
two (2) boring bar holders
one (1) boring bar holder with coolant through
one (1) each boring bar sleeve ½’, 5/8” and 1” capacity
one (1) boring bar sleeve with coolant thru
Optional Programmable Tail Stock US $3,260
Optional 10" hydraulic 3-jaw chuck with soft jaws US $825.00
*FAGOR 8055 CONTROL
manual tool offset calibration
conversational as well as G-code programming
capable of converting conversational programs to G-code programs
inside/outside taper threading and boring cycle
thread repair feature
thread interrupt and spindle override feature while threading
built-in profile editor
rigid tapping
spindle orientation M19
tool inspection
MDI mode
automatic block search after unexpected interruption or power outage
USB + RS-232 + Ethernet ports for uploading/downloading programs
programmable M-codes
solid graphics
