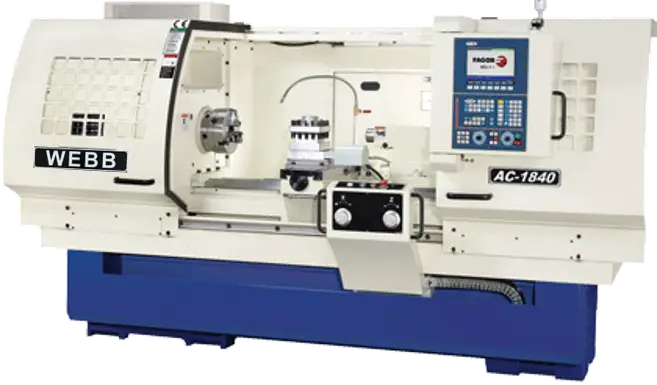

18"X40" New Webb Model AC1840 Flat Bed CNC Lathes With Fagor 8055 Control
Swing Over Ways 18.1"
Swing In Gap 25.1"
Swing Over Cross Slide 9"
X Axis Travel 11.02"
Z Axis Travel 31.8"
Center Distance 40"
Spindle Nose D1-6
Spindle Hole 2.2"
Spindle Hole With Hydraulic Chuck 1.8"
Spindle Speeds
Low 33 To 152 Rpm's
Medium 153 To 680 Rpm's
High 681 To 3,100 Rpm's
Feed Rates
X Axis Rapids 5 M
Z Axis Rapids 7 M
Ball Screws
X Axis 025 P5
Z Axis 040 P10
Standard Turret 4 Station Electric
Optional Turret 8 Station
Tail Stock
Quill Stroke 6.69"
Quill Diameter 2.9"
Quill Taper #5 Morse
Main Motor 10 Hp.
Floor Space 48"X 96"
Height 60"
Weight 6,394 Lbs.
Bed Way With 13.779"
100% Taiwan Made Machinery Since 1977
FAGOR Control is standard, but ANILAM, FANUC & SIEMENS Control is available on request.
Spindle auto speed shifting (3 steps) and CNC controlling.
All casting are made of high tensile Meehanite cast iron which are annealed treatment to eliminate internal residual stress.
Wide bed and box constructed, bed ways are high frequency heat treated, precision ground etc., to provide stability at high speed running or deep cut.
Spindle & gear are made of CR-MO alloy steel which are carburizing; precisely ground, forced lubricating & oil bathed combined in headstock which can be prolonged servicing life.
Three point support on the spindle with two taper roller bearings and on roller bearing to assure the accuracy & rigidity.
AC-1800 series with hi-spindle speed 3100 rpm.
Gap bed on request.
High precision ball screw.
CSS available.
Heavy duty tailstock.
V-8 turret tool post on request.
Electric 4-Way tool post on request.
External spindle cooling system on request.
