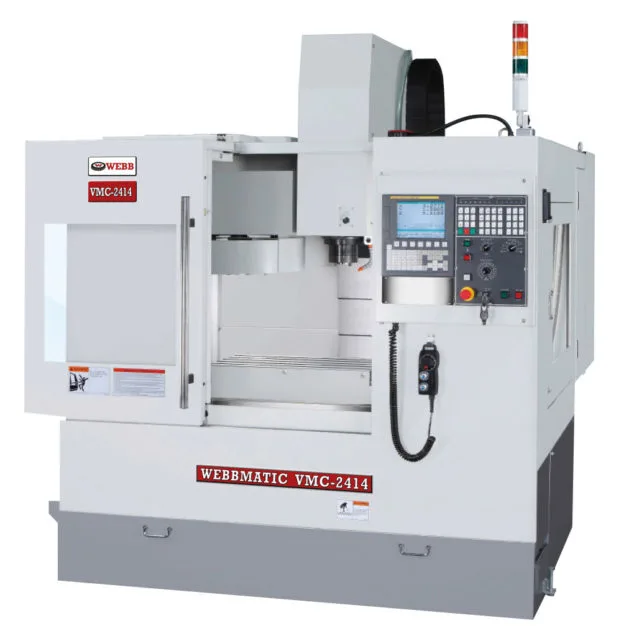

Webb Champ CNC Mini Mill VMC-2414

Machine Specifications VMC-2414
Controller
FANUC Oi
Travel
x-Axis 14" (610 mm)
Y-Axis 24" (355 mm)
Z-Axis 18.1" (460 mm)
Spindle nose to table 2.8" - 20.9" (70 - 530 mm)
Spindle center to column 16.3"
Table
Table size 27.6" x 13.78" (700 x 350 mm)
Floor to table 32.9" (835 mm)
Max. table loading capacity770 lbs.(350 kg.)
T-slot (number x width x pitch) 5 x 0.6" x 2.5" (5 x 16 mm x 63.5 mm)
Feed system
Rapid traverse speed
X / Y: 787 i.p.m. /min (20 M/min), Z:708.7 i.p.m. /min (18 M/min)
Feed motor (FANUC)
X / Y:1.8 KW (11 Nm), Z:2.5 kw(20Nm)
Ball screw diameter & pitch 1.3" / 0.4" (32 mm/ 10 mm)
Cutting feed rate Type 0.04 - 393.7 i.p.m. (1 - 10.000 mm/m in)
Type of transmission Direct
Spindle
Type o f tool shank CAT-40 I BT-40 I DIN69871A
Max. spindle speed 10,000 rpm
Spindle motor 7.5 / 11 kw (10 / 15HP)
Type o f transmission Belt
ACT
Tool storage capacity 16 tools
ATC type Armless
Max. tool diameter 3.7" (150 mm)
Without adjacent tool 5.9" (150 mm)
Max. tool length 11.8" (300 mm)
Max. tool weight 15 Lbs. (7kg.)
Tool changing time (tool to tool) 7.5 sec
Tool changing time (chip to chip) 8.1 sec
Method of tool selection By address code
Tool display Yes
Coolant system
Coolant tank size 42 Gal (160 L)
Coolant capacity 40 gal/min {150 Umin)
Chip flush capacity Standard
Machine size
Machine height 94.5" (2,400 mm)
Floor space 72.8" (1,850 mm)(W) x 71.9" (1,825 mm)(D)
Weight 5,500 Lbs. (2,500 kg.)
Power source
Electrical power supply 15 KVA/ 3PH, 220V 50/ 60 Hz
Compressed air supply Controller 85 psi (6.0 kg. / cfm)
Options:
4Th Axis Ready $7,900.00
Chip Conveyor ( Flat Type , Belt ) $3,990.00
