4 A Used Warner & Swasey Lever Head Saddle Type Turret Lathe

Swing Over Bed Ways 28-1/4"
Swing Over Cross Slide Carriage 22-7/16"
Center Distance 60"
Spindle Hole 9-1/4"
Spindle Speeds 12 To 424 Rpm's
Spindle Nose A-15
Chuck Size 24" 3-Jaw
Feeds Cross .003 To .103 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Front Tool Turret Longitudinal Travel (Z-Axis) 54-7/8"
Front Tool Slide Cross Travel (X-Axis) 17"
Rear Hex Turret Longitudinal Travel (Z-Axis) 54-7/8"
Main Motor 40 Hp. 220 / 440/60/3
Machine Dimensions 7' W X 18' L
Machine Height 65"
Weight 17,500 Lbs.
Flange Holders Long 3
Slide Tool Holder 2
Tool Post 4 Way On Front Yes
Fixed Rear Turret Yes
Rapid Traverse on Front Turret & Rear Turrets Yes

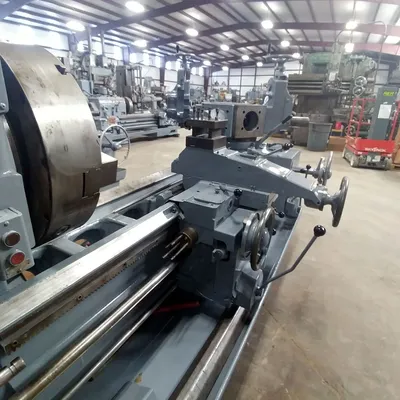

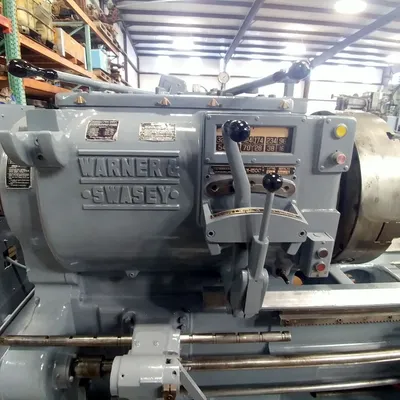

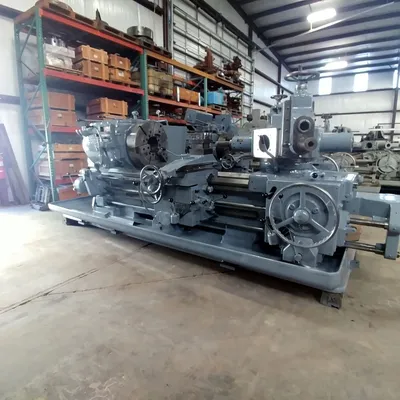

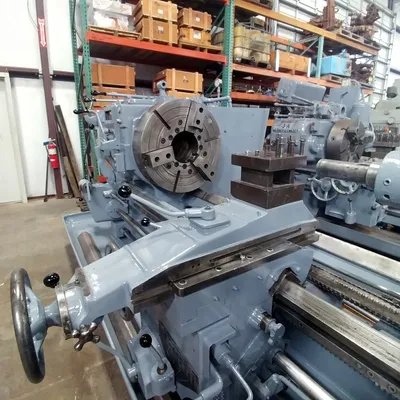

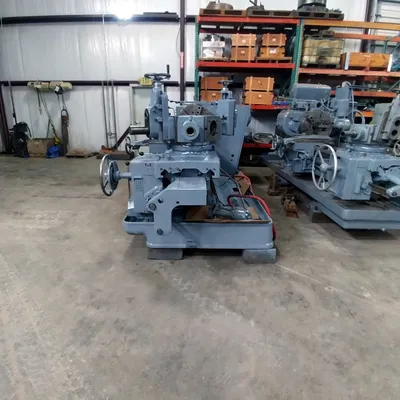

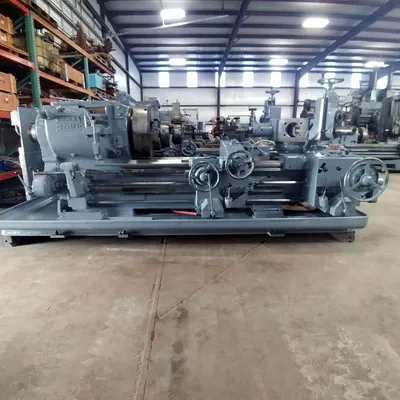

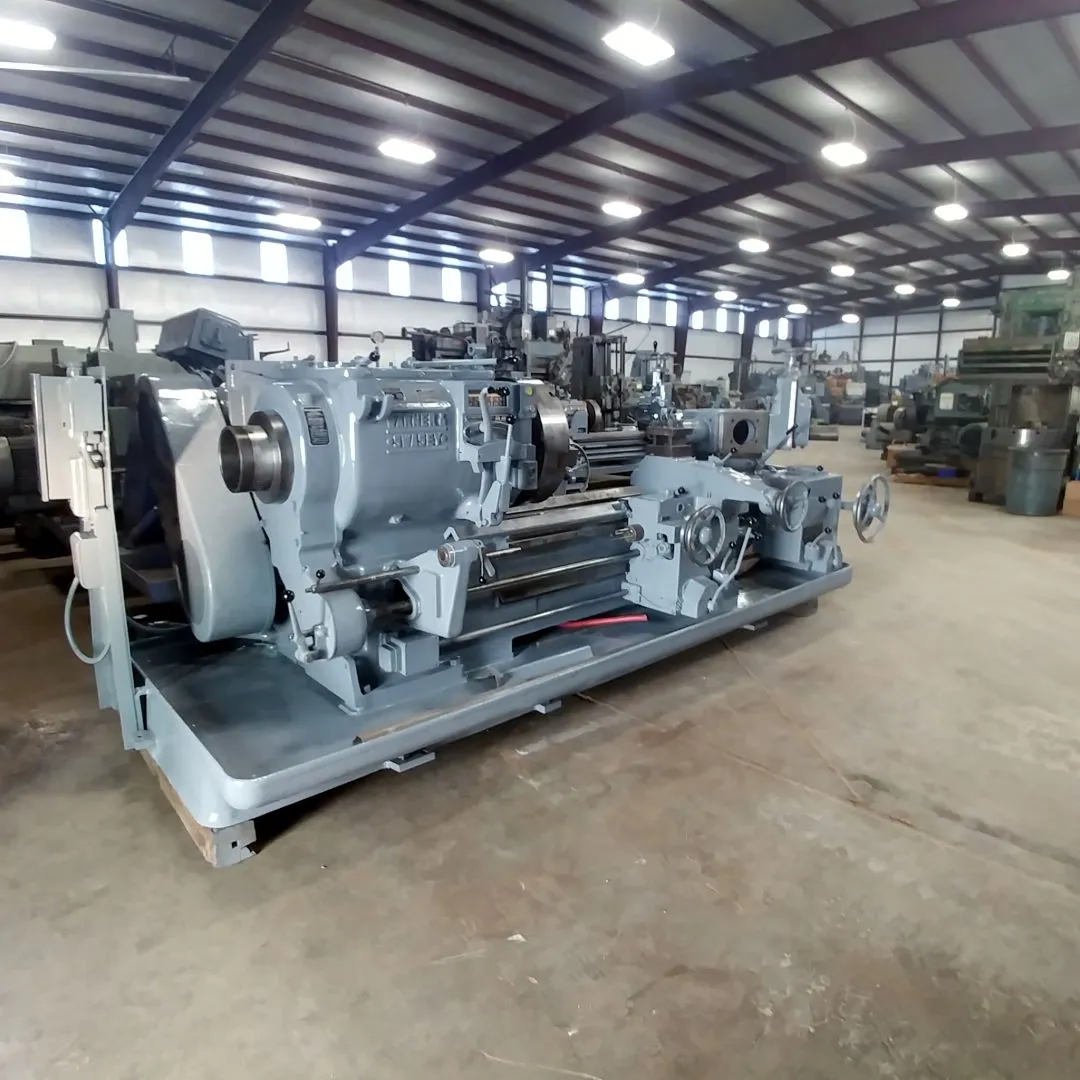

Note: Photos are from a machine we recently sold.
Note: Machine will be cleaned, painted and cycled.
Condition Good
