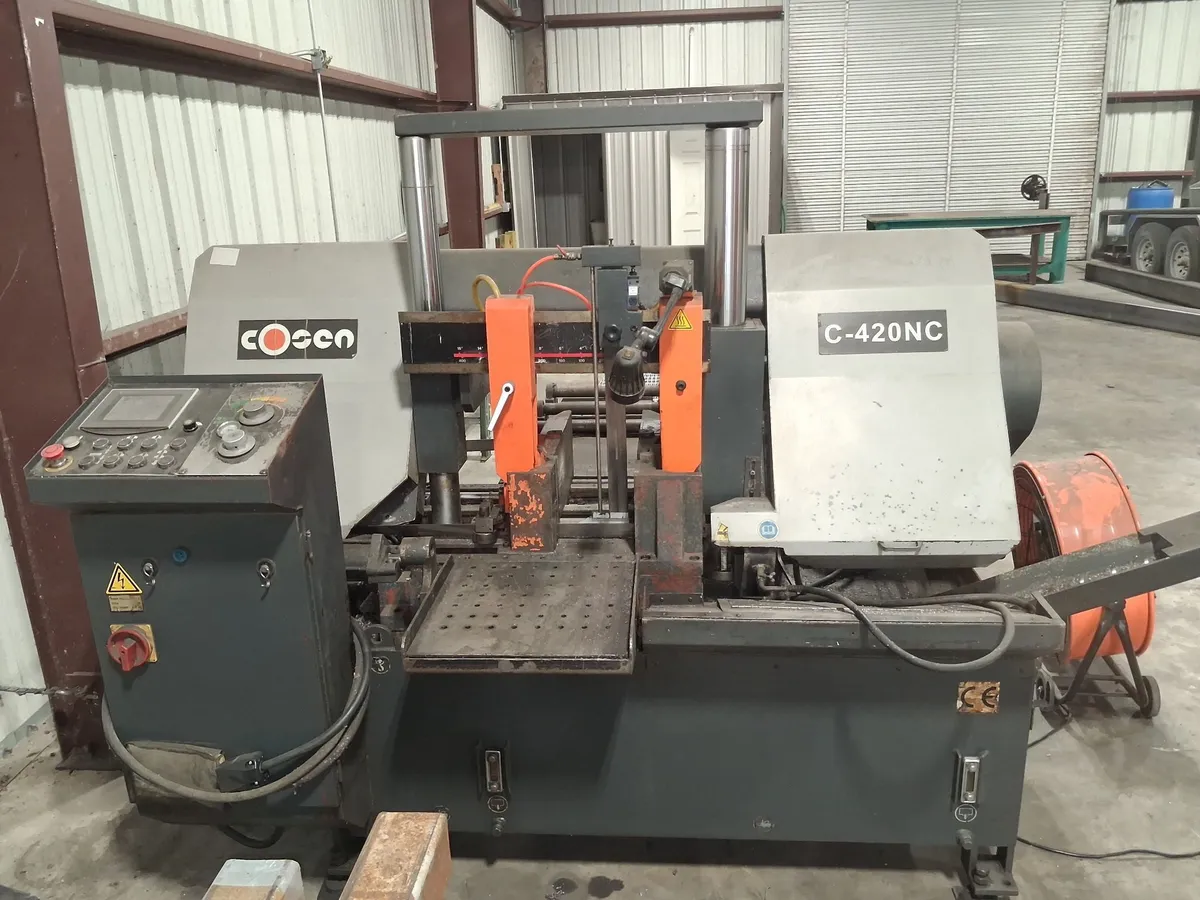

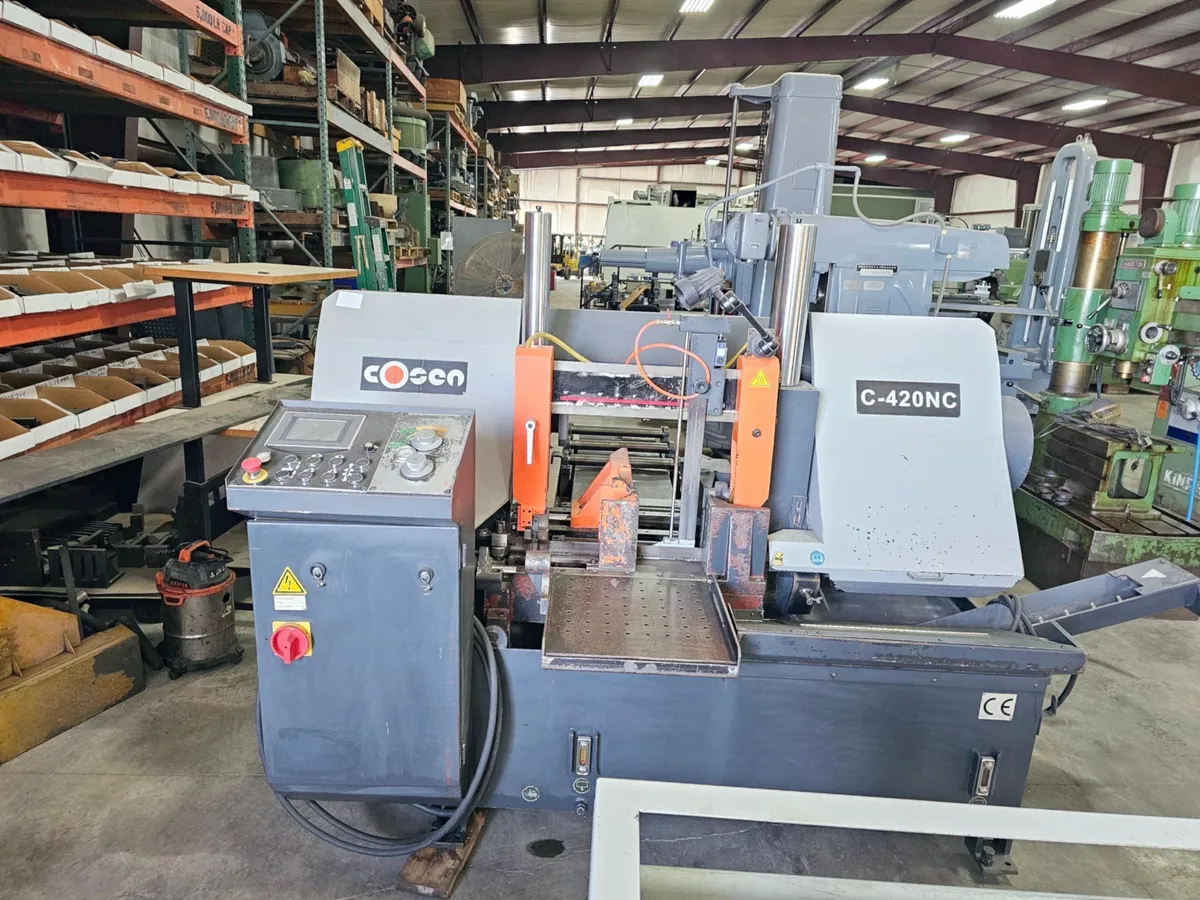

16.5" X 16.5 " Cosen Horizontal Dual Column Band Saw

Cosen's C-420NC is a high production machine which incorporates
a massive base, sturdy saw frame, with an extremely heavy duty
gear box, a 10HP drive motor, and a user friendly programmable
control for ease of operation. Rugged, dependable, and advanced technology,
are all words that describe Cosen's C-420NC production machine, making it
the perfect saw for mass production settings.
Control System:
Smart NC-100 (SNC-100) technology provides most of the benefits of NC
controlled saws at a mere fraction of the cost. SNC-100 controls are programmable
up to 100 different jobs including quantity and length of cut. The controls
automatically compensates for Kerfloss after data input and requires no manual
calculation of number of times to index.

Machine Specifications:
Maximum Cutting Capacity Round..............................16.5”
Square......................................................16.5” x 16.5”
Rectangular.................................................16.5” x 16.5”
Bundle Capacity Width.......................................7.5” to 14.2”
w/ optional top clamps Height:..............................3.9” to 7.1”
Remnant Piece...............................................2.4”
Work Bed Height.............................................29.1”
Blade Variable Speed........................................50 - 328 fpm
Size........................................................15.875” x 1.5” x .050”
Motor Saw Blade.............................................10 HP
Hydraulic...................................................2 HP
Coolant.....................................................1/4 HP
Auto. Material Feed System Job Storage Up to 100 jobs
Single Index Stroke.........................................0” to 19.8”
Multiple Stroke Indexing....................................0” to 999”
(Automatic kerf compensation)
Power.......................................................230V, 3 PH, 60 Hz 20 Amps
Optional....................................................460, 3 PH, 60 Hz 10 Amps
Floor Space.................................................R-L 101.5” x F-B 97.8”
Height......................................................71”
Weight......................................................4,901 LBS.
Standard Features:
Back-tilt design puts less stress on the blade, ensuring longer blade life
Hydraulic shuttle vise assembly
Gearbox designed to accept high lateral pressure (no thermal distortion)
Infinitely variable blade speeds
Carbide blade guides
