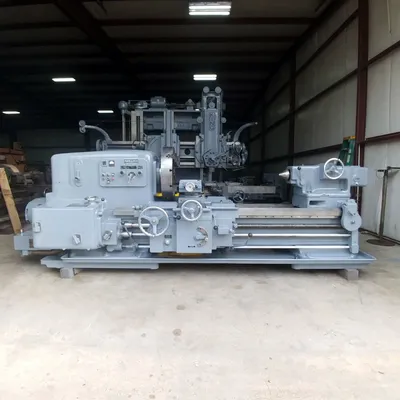

40" X 60" Used Heavy Duty Monarch Engine Lathe

Swing Over Bed Ways.................................40"
Swing Over Cross Slide..............................24"
Center Distance.....................................60"
Spindle Hole........................................4-1/16"
Spindle Speeds......................................6 To 750 Rpm's
Spindle Nose........................................D-11
Face Plate..........................................32" 4-Jaw
Feeds...............................................0.0034 To .196 IPR
Threads Inch........................................1/2 To 28 T.P.I.
Tail Stock Quill Diameter...........................7"
Tail Stock Quill Travel.............................12"
Tail Stock Taper....................................# 5 Morse
Bed Way Width.......................................31-1/2"
Saddle Width........................................47"
Main Motor..........................................40 Hp. 440 Volts
Floor Space.........................................R-L 18' X F-B 84"
Height..............................................84"
Weight..............................................30,000 Lbs.
Coolant Pan / With Coolant..........................Yes
Taper Attachment....................................Yes
Thread Dial.........................................Yes
Single Carriage.....................................Yes
Rapid Traverse......................................No

Optional:
Newall 2 Display D.R.O. System
Price Installed.....................................$4,950.00

Note: Machine Has Been Cleaned, Painted And Cycled.
From Government Surplus, Stennis Space Center.
