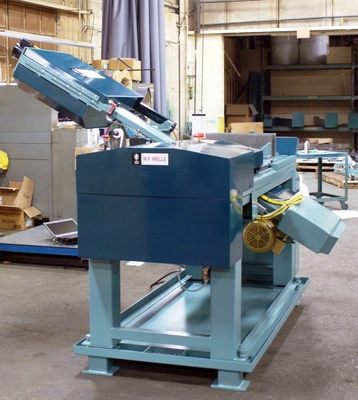

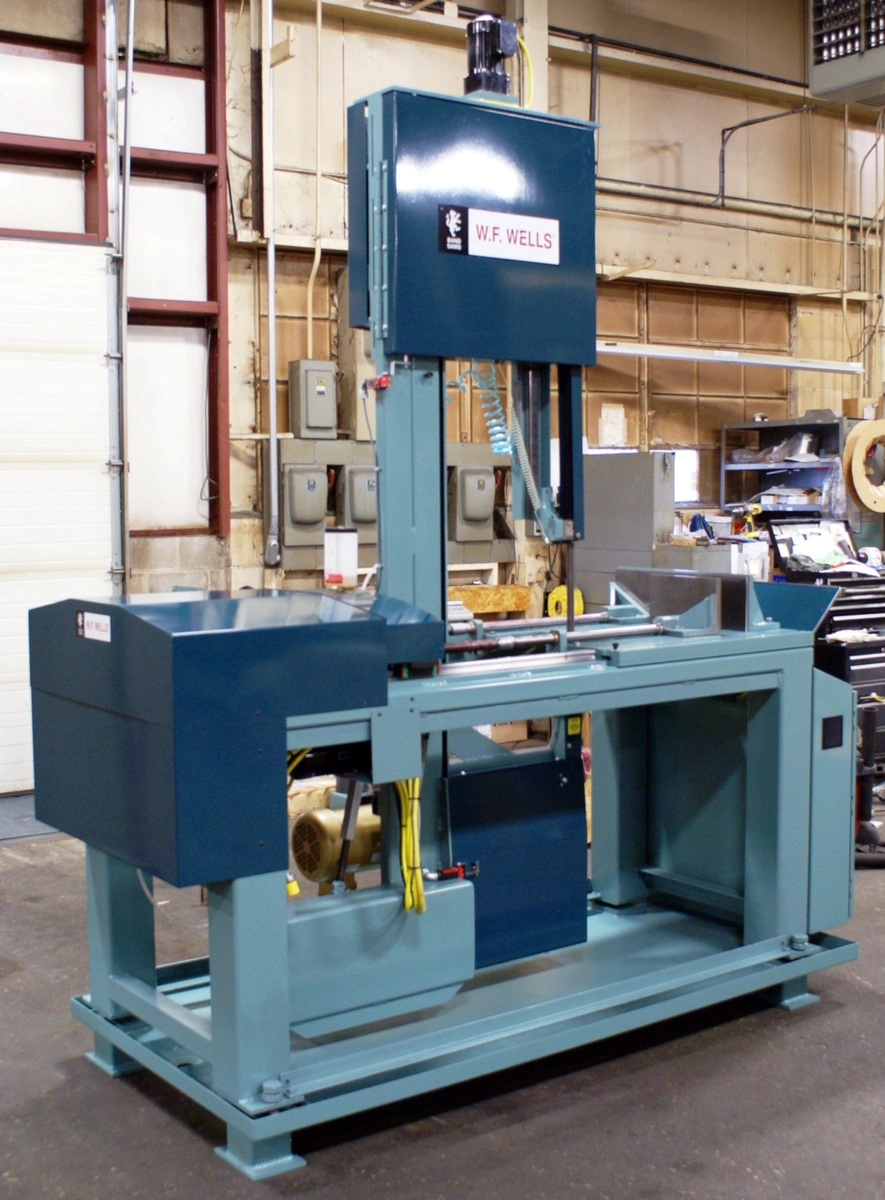

W.F. Wells Model EVM 2030-6 20"X 30" Vertical Saw
New Machinery, Vertical SawW.F. Wells Model EVM 2030-6 20"X 30" Vertical Saw
Work Height | 30" |
Throat | 20" |
Power | 7.5 hp |
Blade Width | 1.25" |
Blade Length | 18.6" |
FPM | 30 To 500 |
Dimensions | R-L 100" X F-B 36" X Height 130" |
Weight | 4,000Lbs. |
Capacity @ 90 Degrees Height X Diameter 30" X 20"
Capacity @ 45 Degrees Height X Diameter 20" X 20"
Capacity @ 60 Degrees Height X Diameter 14" X 20"
Blade Thickness .042"
Blade Width 1-1/4"
Blade Length 18'6"
Blade Speeds Variable 30 To 500 SFPM
Blade Tension Powered Electric Screw
Blade Guide With Carbide Blocks As Back up Rollers
Sawing Force With Digital Readout 0 TO 500 Lbs.
Band Wheel Size 20"
Floor To Table 42"
Work Height With Flood Coolant Option 47.5"
Outfeed Table 24" X 40"
Main Motor AC Vector Drive 7-1/2 Hp.
Floor Space 100" L X 36" Wide
Machine Height 130"
Shipping Weight 4,000 Lbs.
Wired To NFPA 79 Machine Tool Standards Yes
Controls Color Touch Screen-PLC Yes
Angle Control Powered Digital Control
Coolant Spray Type Yes
Prices and Specifications Subject To Change Without Notice:
Optional:
Standard Voltage Order Number.........0010020......208/230-6-3
Voltage Order Number..................0010031......460-60-3.....$1,500.00
Flood Coolant Order Number............0010032 ..................$2,000.00
Prices and Specifications Subject To Change Without Notice:
STANDARD EQUIPMENT:
208/230-60-3 Standard Voltage
(Optional 460-60-3 Available (see above for pricing)
1¼" Bi-Metal Blade
Ball Screw Cutting Head Feed
Mist Coolant System -
Sequenced Minimal Power Consumption Blade
Break/Stall Detection
Electronic Controlled Blade Tension
0°-3° Forward Canted Frame Standard Semi-Automatic Operation
Dual Direction 60° Miter cutting Digital Cut Force
Digital Feed Rate TEFC Motors
Fused Disconnect with Lock-Out Digital Feed Position for Notch
Cutting Quick/Easy Blade Speed Change
Consult Factory For Accessories
Prices and specifications subject to change without notice
