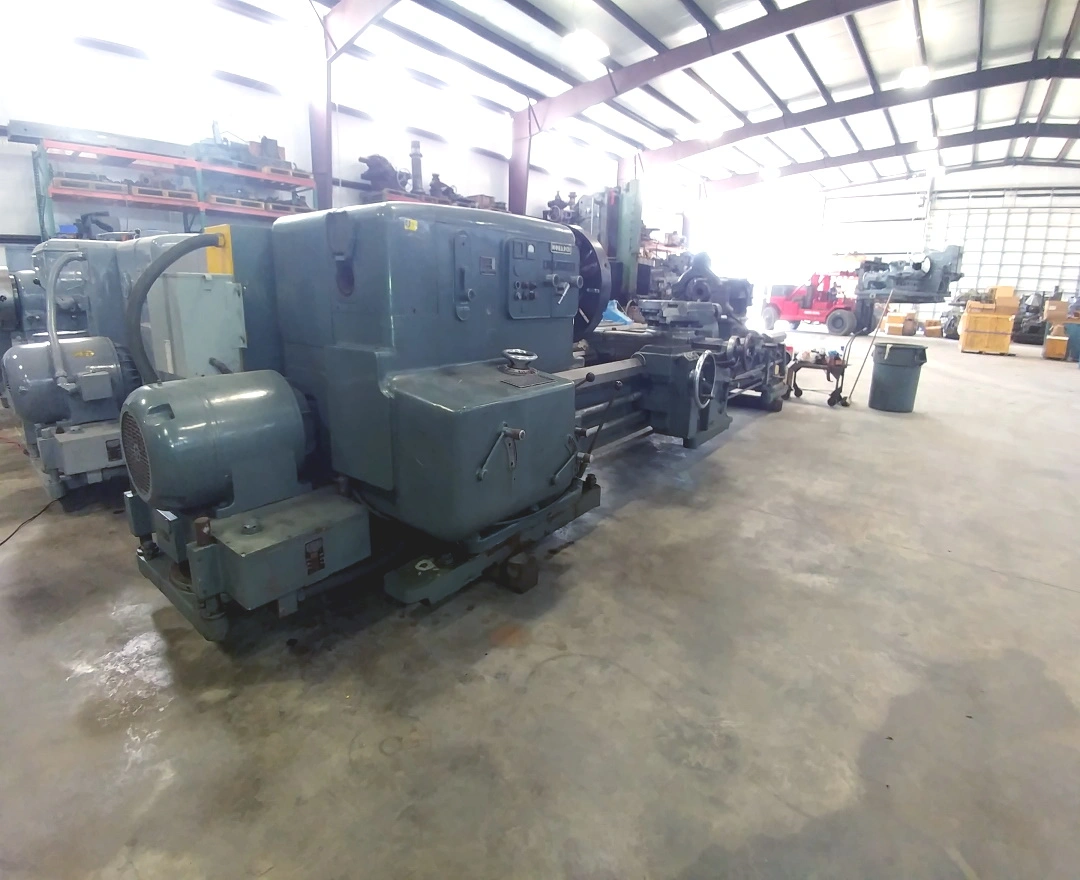

Used MONARCH DYNA SHIFT 90 /25000 | Lathes, Engine

Swing Over Bed Ways.................................40"
Swing Over Cross Slide..............................24"
Center Distance.....................................176" (14'-6")
Spindle Hole........................................4-1/16"
Spindle Speeds......................................6 To 750 Rpm's
Spindle Nose........................................D-11
Face Plate..........................................28" With 4 Boring Mill Jaws
Feeds...............................................0.0034 To .196 IPR
Threads Inch........................................1/2 To 28 T.P.I.
Tail Stock Quill Diameter...........................7"
Tail Stock Quill Travel.............................12"
Tail Stock Taper....................................# 5 Morse
Bed Way Width.......................................31-1/2"
Saddle Width........................................47"
Main Motor..........................................40 Hp. 440
Floor Space.........................................R-L 25' X F-B 84"
Height..............................................84"
Weight..............................................36,000 Lbs.
Steady Rest Capacity Roller Type....................12"
Steady Rest Capacity Pad Type.......................30"
Taper Attachment....................................Yes
Thread Dial.........................................Yes
Single Carriage.....................................Yes
Rapid Traverse......................................Yes

Note:
Machine will be cleaned, painted and cycled.
