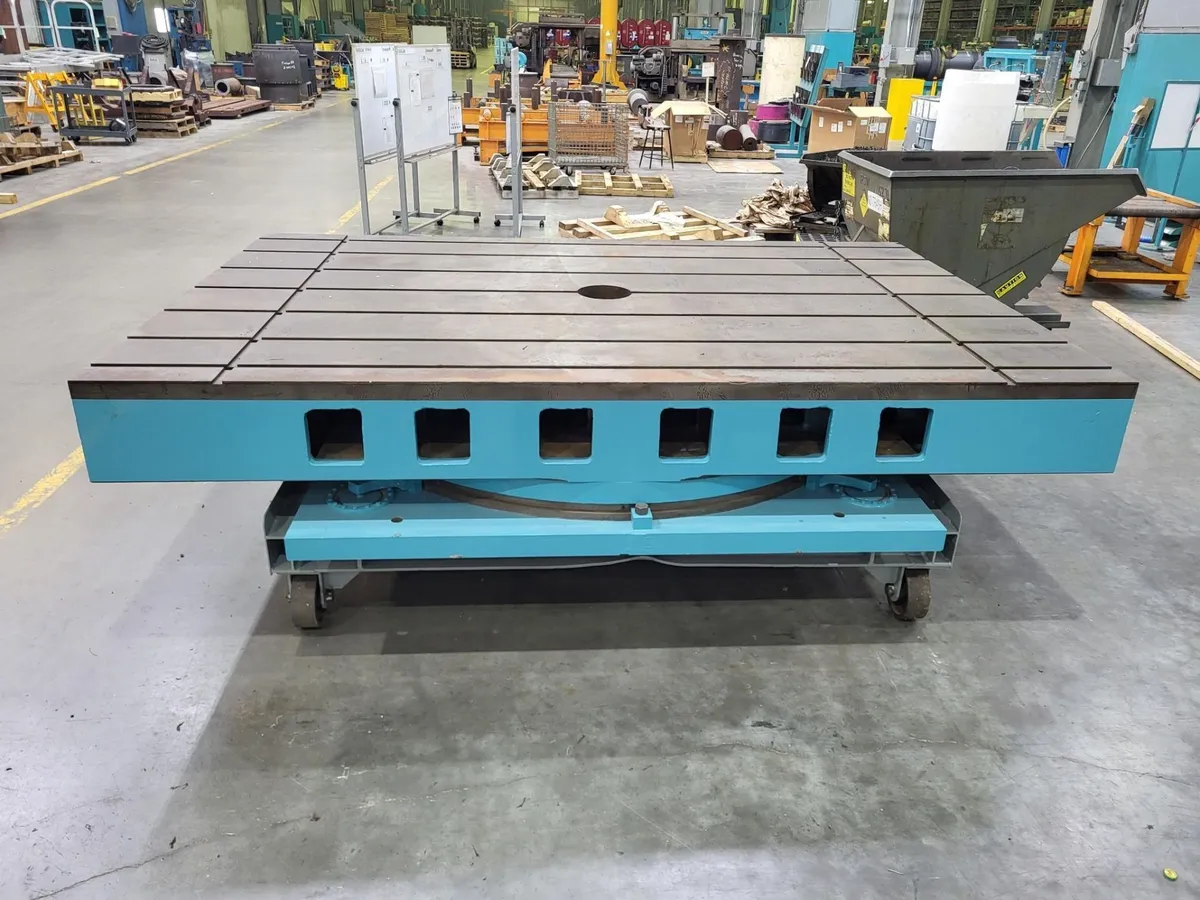

78" X 120" Giddings & Lewis Air Lift Rotary Table
Table Working Surface...............................78" X 120"
Height Of Table.....................................10-3/4"
Number Of T-Slots...................................6
T-Slot Size Bottom..................................1-1/2" W X 5/8" T
T-Slot Size Top.....................................3/4" Wide
T-Slot Overall Height...............................1-3/8"
Table Load..........................................20 Ton
Floor Space.........................................84" W X 130" L
Height..............................................11"
Table Weight........................................12,500 lbs.
Power Clamping To Base..............................Yes
Air Lift............................................Yes
New Air Valve.......................................Yes (2)
New Air Bladders....................................Yes (4)
Condition: Very Good
78" X 120" Giddings & Lewis Air Lift Rotary Table
Imperial
| Table Size-X | 78" |
| Table Size- Length | 120" |
| Table Height | 12" |
| Dimensions | R-L 84" X F-B 120" X Height 13" |
| Weight | 12,500 Lbs. |
Table Working Surface...............................78" X 120"
Height Of Table.....................................10-3/4"
Number Of T-Slots...................................6
T-Slot Size Bottom..................................1-1/2" W X 5/8" T
T-Slot Size Top.....................................3/4" Wide
T-Slot Overall Height...............................1-3/8"
Table Load..........................................20 Ton
Floor Space.........................................84" W X 130" L
Height..............................................11"
Table Weight........................................12,500 lbs.
Power Clamping To Base..............................Yes
Air Lift............................................Yes
New Air Valve.......................................Yes (2)
New Air Bladders....................................Yes (4)
Condition: Very Good
