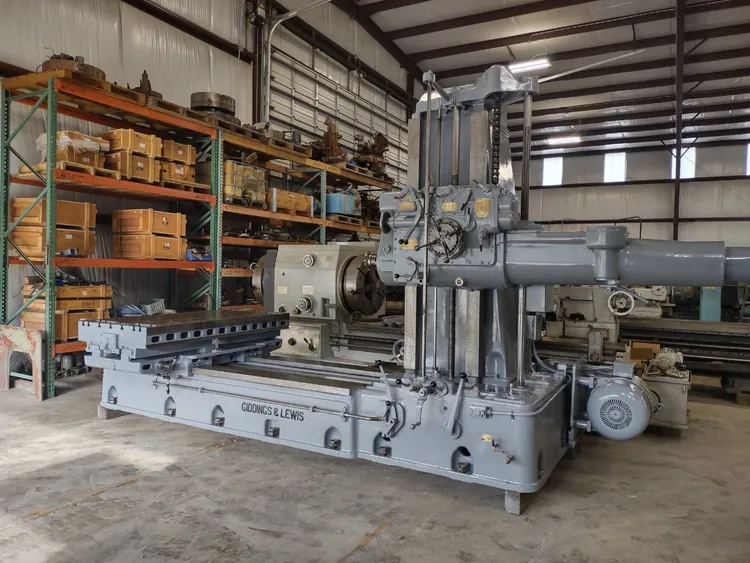

4" Used Gidding & Lewis Table Type Horizontal Boring Mill Model 340T

Spindle Size............................................4"
Spindle Taper...........................................#40
Spindle Speeds Main.....................................7.5 To 500 Rpm's
Spindle Travel Main.....................................24"
Spindle Feeds Main (18).................................0.010 To .500 IPM
Auxiliary Spindle Travel................................9"
Auxiliary Spindle Diameter..............................2"
Auxiliary Spindle Speeds (36)...........................25 To 1,500 Rpm's
Auxiliary Spindle Feeds (18)............................0.002 T0 0.125 IPR
Distance Between Spindles...............................7-1/2"
Main Spindle............................................24"
Milling Feeds For Spindle Head & Table Movements........0.5 To 25 IPM
Rapid Traverse Head Stock, Table & Saddle...............120 IPM
Spindle Head Travel Up & Down...........................48"
Saddle Travel In & Out..................................72"
Saddle Feeds............................................0.05 To 0.625 IPM
Table Size..............................................36" X 74"
Table Travel Cross......................................62"
Table Floor To Table....................................35-1/2"
T-Slots.................................................8"X6"X 13/16"
Width Of Saddle Bed Ways Individual.....................8"
Width Of Saddle Bed Ways Overall........................36"
Length Of Bed Ways......................................72"
Width Of Column Ways Individual.........................4"
Width Of Column Ways Overall............................22"
Length Of Column Ways...................................60"
Main Motor..............................................15 Hp. 440/220
Machine Floor Space.....................................R-L 19' X F-B 9'
Machine Length..........................................19'
Machine Weight..........................................32,000 Lbs.
Rapids..................................................Yes

Note:
Machine will be cleaned, painted and cycled.
