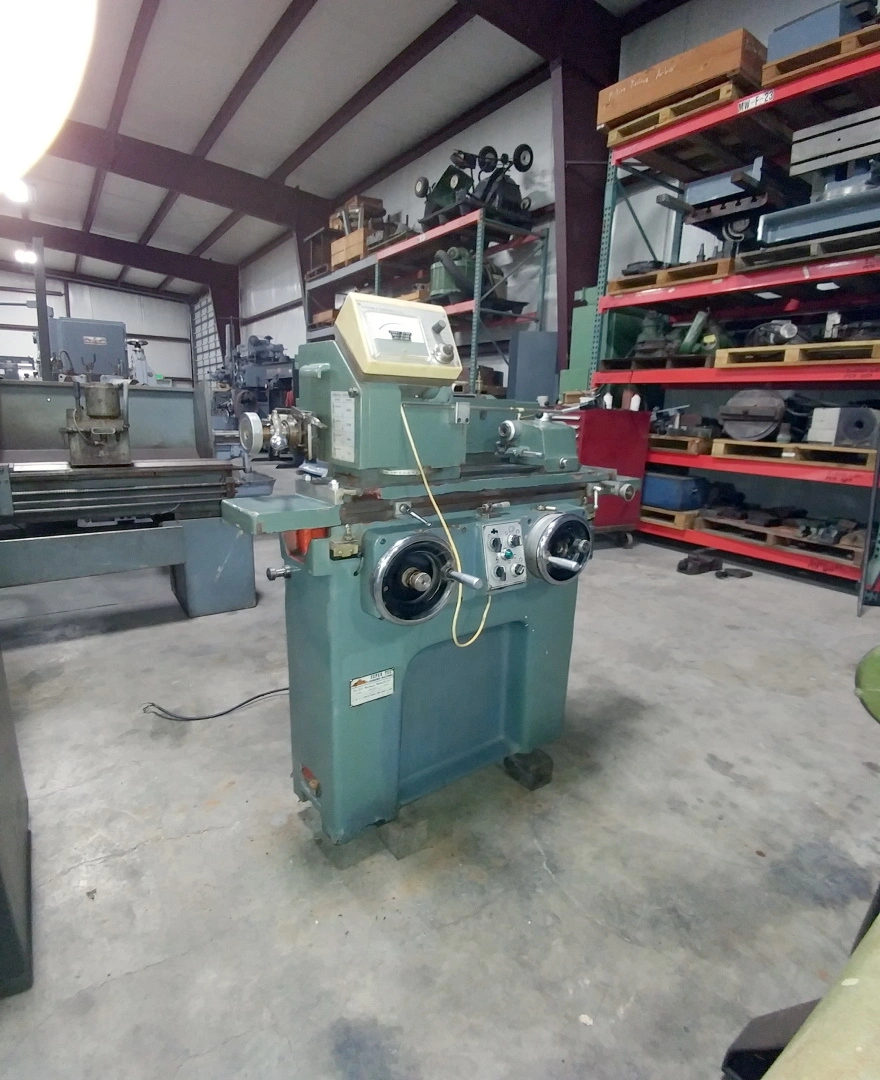

8" X 12" Supertec Universal O.D. Grinder

Maximum Swing...............................................8"
Maximum Distance Between Centers............................12"
Variable Work Head Speeds...................................150 To 483 Rpm's
Grinding Wheel Size.........................................10"
Grinding Wheel Width........................................1.2"
Table Traverse Speed Variable...............................6 To 133 IPM
Table Swivel................................................2-1/2 Degrees
Wheel Head Motor............................................2 Hp.
Work Head Motor.............................................1/4 Hp.
Machine Floor Space.........................................R-L 60" X F-B 48"
Machine Height..............................................51"
Weight......................................................2,500 lbs.
Tail Stock Type Manual Hand.................................Yes
Table Dresser...............................................Yes
Coolant.....................................................Yes
