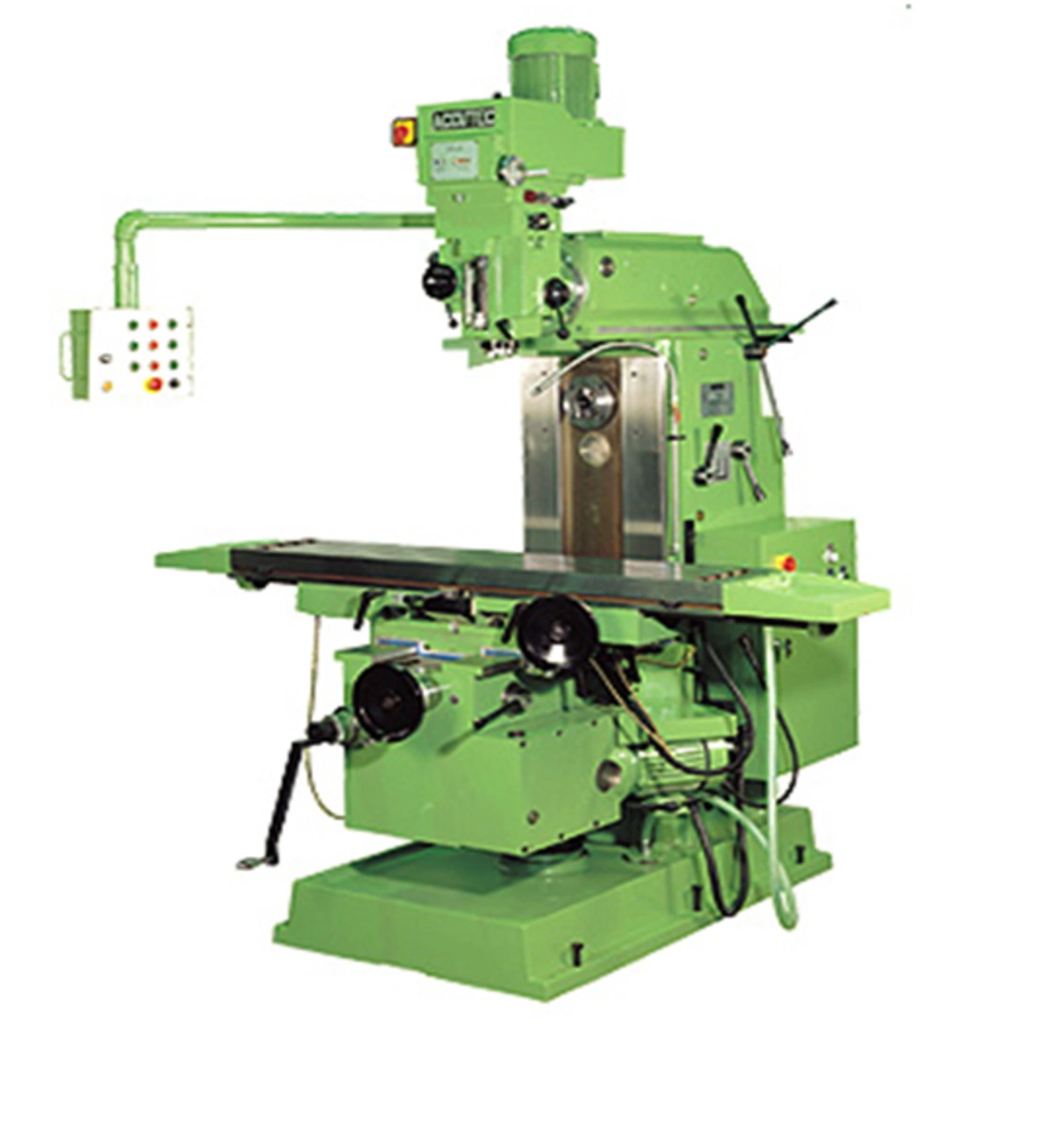

New 13.7"X 59" Masteel Universal Milling Machine With Independent Vertical Head
Have one to sell?
ConditionNew
New
13.7"X 59" Masteel Universal Milling Machine With Independent Vertical Head
Table Size 13.7" X 59"
Table Swivel + / - 45 Degrees
Table Load 1,320 Lbs.
Table T-Slots Number X Width X Distance Of T-Slot 3 X .708 X 2.75
Table Longitudinal Travel 46"
Table Cross Travel 15-3/4"
Knee Vertical Travel 20"
Spindle Speed 4- To 1,800 Rpm's
Longitudinal And Cross Feeds .004 To .47"
Vertical Feeds .002 To .23"
Longitudinal And Cross Rapid Reverse 47 IPM
Vertical Rapid Traverse 23 IPM
Main Horizontal Spindle Motor 5 Hp.
Feed Motors 2.5 Hp.
Housing of taper Spindle ISO 40/50
Number Of Speed 12
Vertical Spindle Rpm's 35 To 1,600 Rpm's
Max Swivel Of Universal Milling Head + / - 360 Degrees
Max. Swivel Of Vertical Spindle + / - 360 Degrees
Vertical Spindle Main Motor 7.5 Hp.
Coolant Motor 1/8 Hp.
Machine Height 96"
Floor Space 84" X 96"
Weight 7,480 Lbs.
MAXCUT UNIVERSAL MILLING MACHINE STANDARD FEATURES
Rapid traverse on "X", "Y" & "Z" axis. Table swivels ±45° degrees left & right
Motorized ARM/RAM elec. Motor is 3.75KW (5.5HP) Horizontal spindle elec.
Motor is 5.5KW (7.5HP) Long Horizontal milling arbour two over arm supports
manual drawbars Coolant pump Chip tray
Optional :
10HP motor for Horizontal spindle $600.00
Brake motor with Vertical & Hor. 5.5HP / 7.5HP $1,250.00
Brake motor with Ver. & Hor. 5.5HP & 10HP $1,450.00
Brake motor with Horizontal 7.5HP $717.00
AC auto feed for over arm $1,583.00
Air Power Draw Bar #50 with Horizontal $1,833.00
Air Power Draw Bar #50 with Vertical $1,750.00
Variable speed: Horizontal spindle $2,000.00
Variable speed: Vertical Spindle $1,450.00
AL-500S Power Feed X / Y Axis $400.00 Each
