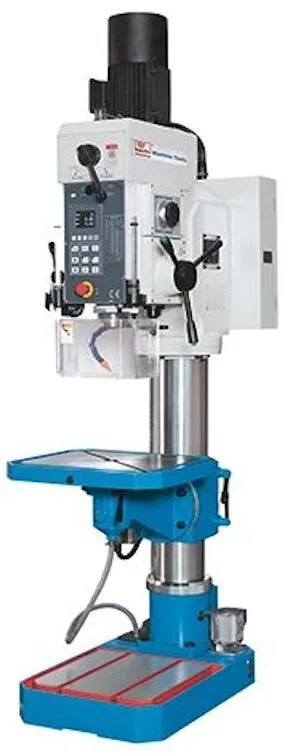

New Knuth Upright Drill Press Model SSB 40 F Super VT Drill Press
Ideal for drilling, countersinking, reaming and tapping
• Heavy construction with thick-walled column and large throat
• Base, column, table and gear head are made of premium high-quality cast iron
• Large drill press table with circumferential coolant groove, height adjustment, and ± 45° swivel range
• Table height adjustment via a powerful motorized drive
• The auxiliary gears run in an oil-bath for maximum reliability and minimum wear
• 4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop
• Easy handling of the machine ensures effortless operation in a production environment
• Thread-cutting feature is standard
Modern operating concept with rugged touchscreen display
• 8" touchscreen features a rugged, resistant surface
• No programming skills are required for the modern, patented control system
• The infinitely variable spindle speed can be controlled at the display and is easy to read
• The control system assists the operator with the selection of the correct rpm and feed speed
• The system recommends cutting parameters based on bore diameter and material, which also may be accepted automatically
• The depth stop is set electronically at the display
• Measuring units for input and display can be selected by the operator (mm or inch)
• Various alarm screens warn the operator in case of operational errors
• The high-performance coolant system also is activated at the touchscreen
• The system features an operating hour counter
Throat..............................................13"
Column Diameter.....................................6"
Vertical Head Travel................................11"
Table Size..........................................17"X21"
Table Travel Manual.................................22.44"
Table Travel Power..................................16.93"
Table Swivels Right To Left +/-.....................45 Degrees
Drilling Capacity Steel.............................1.5"
Tapping Capacity Steel..............................0.944882
Quill Stroke........................................7"
Quill Taper.........................................#4 Morse
Quill Feeds.........................................0.0039, 0.0079,0.0118 & 0.0157 Rev.
Spindle Nose To Table Distance Max..................26"
Spindle Nose To Foot Distance.......................47"
Spindle Speeds......................................60 To 2,600 Rpm's
Spindle Axis To Table Surface Distance..............24.8"
Spindle Nose To Foot Base...........................47"
Main Motor..........................................2.7 Hp.
Machine Floor Space.................................26" X 35"
Machine Height......................................88"
Machine.............................................1,210 Lbs.
Power Elevating Table...............................Yes
Coolant.............................................Yes
Tapping Unit........................................Yes
LED Work Light......................................Yes
Operators Manual....................................Yes
