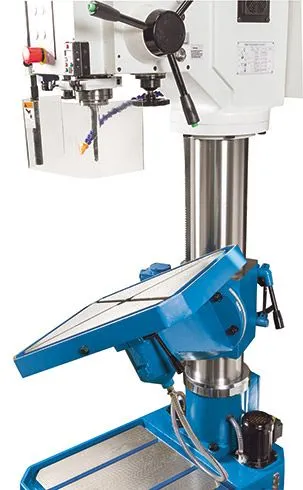

New Knuth Upright Drill Press
Very rigid construction with thick-walled column and large throat
Infinitely variable speed adjustment with back gearing and digital speed display
4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop
Motorized table height adjustments
Digital boring depth display
Large drilling table with circumferential coolant groove, height adjustment, and ± 45° swivel range
Tapping unit is standard
Throat 13"
Column Diameter 6"
Vertical Head Travel 11"
Table Size 17"X21"
Table Travel Manual 22.44"
Table Travel Power 16.93"
Table Swivels Right To Left +/- 45 Degrees
Drilling Capacity Steel 1.5"
Tapping Capacity Steel M 24
Quill Stroke 7"
Quill Taper #4 Morse
Quill Feeds .004 , .008, .012 & .016 Rev.
Spindle Nose To Table Distance Max 26"
Spindle Nose To Foot Distance 47"
Spindle Speeds 60 To 2,600 Rpm's
Spindle Taper #4 Morse
Spindle Axis To Table Surface Distance 24.8"
Spindle Nose To Foot Base 47"
Machine Floor Space 24" X 30"
Main Motor 2.7 Hp.
Machine Height 87"
Floor Space 39"X 26"
Machine 1,100 Lbs.
Power Elevating Table Yes
Coolant Yes
Tapping Unit Yes
LED Work Light Yes
Machine Vise Yes
Boring Head With Boring Bars Yes
Drill Chuck And Holders Yes
Oscillation Level Pads Yes
Operators Manual Yes
Condition New
