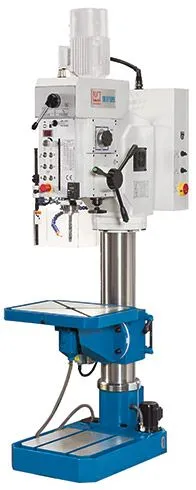

New Knuth Upright Drill Press Model SSB 50 F Super
Column Drilling Machines
Production drill press with infinitely variable speed and tapping features
• Drilling capacity 1.97 in
• Tapping capacity, steel 1.18110236
• Quill stroke 8 in
Ideal for drilling, countersinking, reaming and tapping
• Very rigid construction with thick-walled column and large throat
• Infinitely variable speed adjustment and digital speed display
• 4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop
• Motorized table height adjustments
• Digital boring depth display
• Large drilling table with circumferential coolant groove, height adjustment, and ± 45° swivel range
• Tapping unit is standard equipment
Throat.................................................14"
Column Diameter........................................7"
Quill Taper............................................#4 Morse
Quill Stroke...........................................8"
Quill Feeds............................................0.008, 0.012, & 0.017,0.50 Rev.
Table Travel Power.....................................16.14"
Spindle Nose To Foot Distance..........................46"
Table Size.............................................18" X 23"
Table Travel Manual....................................20.87"
Table Swivels Right To Left +/-........................45 Degrees
Drilling Capacity......................................2"
Tapping Capacity Steel.................................1.18110236
Spindle Nose To Table Distance Max.....................23"
Spindle Speeds.........................................50 To 2.200 Rpm's
Spindle Axis To Table Surface Distance.................24.8"
Spindle Nose To Foot Base..............................47"
Machine Floor Space....................................24" X 30"
Main Motor.............................................3 Hp.
Floor Space............................................46"X 27"
Machine Height.........................................93"
Machine................................................1,430 Lbs.
Elevating Table........................................Yes
Coolant................................................Yes
Tapping Unit...........................................Yes
LED Work Light.........................................Yes
Operators Manual.......................................Yes
