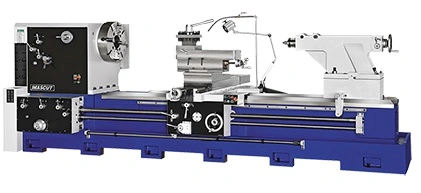

42" X 200" New Webb Heavy-Duty Engine Lathe
Have one to sell?
ConditionNew
New
42" X 200" New Webb Heavy-Duty Engine Lathe
Swing Over Bed Ways 42.1"
Swing Over Cross Slide 29.29"
Swing In Gap 61.12"
Length Of Gap 22.4"
Width Of Bed 17.7"
Cross Slide Travel 27.5"
Compound Travel 14.96
Center Distance 200"
Spindle Hole 6.12"
Spindle Speeds 5 To 615 Rpm's
Spindle Nose A-1-11
Chuck Size 16" 3-Jaw
Chuck size Rear 20" 4-Jaw
Feeds Cross 0.025 To 0.76 MM IPR
Feeds Long 0.05 To 1.52 MM IPR
Threads Inch 2 To 60 T.P.I.
Threads Metric 1 To 30 MM
D.P. 4 To 56 T.P.I.
Module 0.5 To 15 M
Lead Screw Diameter And Threads 2 TPI
Tail Stock Quill Diameter 4.1"
Tail Stock Quill Travel 8.6"
Tail Stock Taper # 5 Morse
Coolant Pump Motor 1/16 Hp.
Main Motor 20 Hp.
Rapid Traverse Long. 3/4 Hp.
Machine Length 306"
Machine Width 84"
Machine Height 72"
Machine Weight 20,100 Lbs.
Optional:
Full Length Splash Guard
Quick Change Tool Post & 10 Holders
Newall 2 Axis D.R.O. System
Steady Rest (2) Roller Type
6 Way Rapid Traverse
Chuck Guard Yes
Telescopic Taper Attachment Installed
WEBB MA 42 Swing MASSIVE CUT Engine Lathes
WEBB Lathes are 100% Taiwan Built Machines with an Unmatched Reputation for Long Service.
We maintain a Complete Inventory of Parts. Friendly Staff for Over 40 Years!
Each Machine Includes the Following Standard Features
Heavy Duty Certified Meehanite Castings, Removable Gap Bed, Turcite Coated Female Surface's, Inch /Metric Dials, Automatic Forced Lubrication, Tail Stock, A1-11 Spindle, 6" Spindle Bore, 20 HP, Inch Metric Threading, Flood Coolant, Rear Chip Guard, Longitudinal Adjustable Stop, Center Sleeve, 2 Dead Centers, Touch Up Paint, Adjustment Tools, Operators and Parts Manuals.
NOW Optionally Available with Inverter Head and Constant Surface Speed Via PLC
