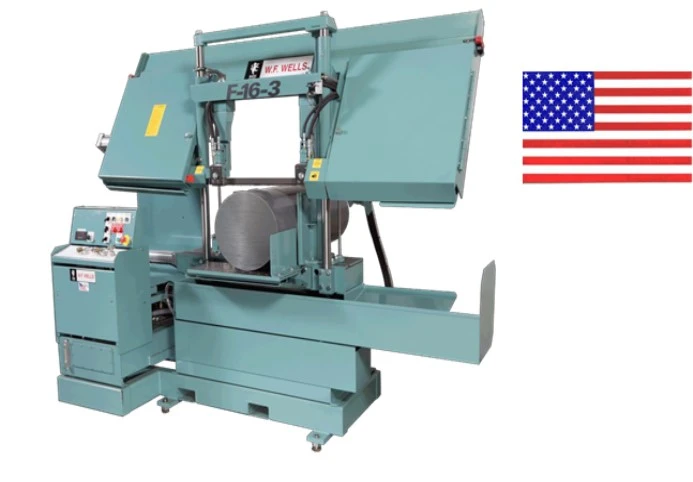

W.F. Wells Model F-16-3 17"X20" Horizontal Saw

Maximum Capacity Round.......................................17"
Maximum Capacity Flat........................................20"
Maximum Capacity @ 90 Degrees................................17"X20"
Work Height..................................................35"
Weight Capacity..............................................5,000 Lbs.
Blade Size...................................................16'8" X 1-1/2" X .050
Blade Speed..................................................60 To 425 SFPM
Sawing Force.................................................0 - 750 Lbs.
Main Motor...................................................10 HP, AC Vector Drive
Motor Hydraulic..............................................2 Hp.
Floor Space..................................................R-L 101" X F-B 50"
Height.......................................................88"
Weight.......................................................3,200 Lbs.
Coolant......................................................15 Gallons
Hydraulic Tank Capacity......................................20 Gallons
Hydraulic Blade Tension......................................Yes
Hydraulic Vise Full Stroke...................................Yes
Carbide Guides With Back Up Rollers..........................Yes
Power Down ..................................................Yes
Manual In Feed Of Material...................................Yes
Discharge Table..............................................No

Optional:
Desription Order Number Cost
Discharge Worktable 20" W x 48" L w/ Stock Stop 0053201 $3,050.00
Work Light Wired in 0052021 $375.00
Blade Break/Stall Switch 0056040 $675.00
Hydraulic Chip Conveyor, Auger Style 0056036 $5,475.00
Hydraulic Hold-down Saw Vise 0056486 $3,250.00
Laser Shadow Line 0052220 0052220 $3,050.00
Electric Powered Conveyor 21" x 10' 0056204 $10,875.00
Free Standing Non-Powered Conveyors, 6" Centers
21" x 5' x 5,000 lbs. Cap. Distributed Weight 0050252 $1,850.00
21" x 10' x 10,000 lbs. Cap. Distributed Weight 0050251 $2,875.00

Voltage Option:
Order Number Voltage
0010620 208-60-3
0010621 230-60-3
0010622 460-60-3
0010623 575-60-2

Customer are responsible for set up of saw, i.e., power, leveling,
conveyors attached, coolant in tank, and extra blades.
