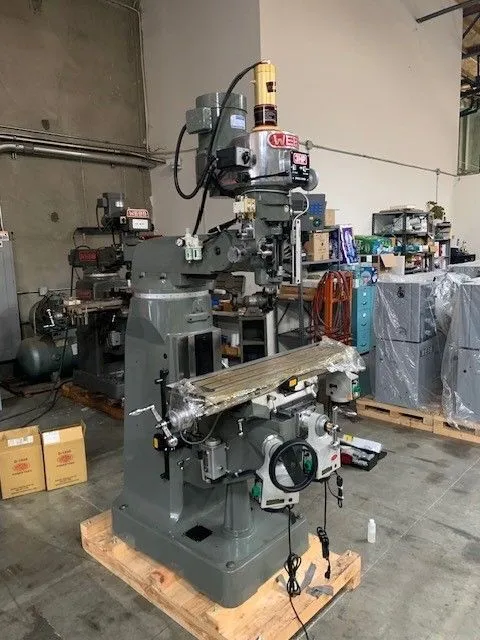

New 9" X 42" Webb Knee Type Milling Machine Model Champ 2VH

Table Size....................................................9" X 42"
Table Weight Capacity.........................................946 Lbs.
T-Slots On Table..............................................3
T-Slot Size...................................................5/8"
Spindle Taper.................................................R- 8
Spindle Speeds Low............................................80 To 550 Rpm's
Spindle Speeds Variable High..................................600 To 4,200 Rpm's
Spindle Feeds.................................................0.00015 To 0.0047 I.P.R.
Spindle Quill Travel..........................................5"
Quill Diameter................................................3.375"
Spindle Tilt +/-..............................................45 Degrees
Spindle Swivel +/-............................................90 Degrees
Spindle To Table Min. / Max...................................1-5/8" To 16-1/2"
Spindle Centerline To Column Min. / Max.......................4" To 25-5/8"
Saddle Travel In & Out........................................12"
Table Travel Longitudinal.....................................30"
Knee Travel...................................................16"
Main Motor....................................................3 Hp.
Floor Space Right To Left.....................................72"
Floor Space Front To Back.....................................84"
Height........................................................84"
Weight........................................................2,550 Lbs.

Manual Milling Machine Options: Prices Subject To Change Without Notice
Stock Number.......Description................................Price
Power Tool Lock:
WEBB-1035
Maxi Torque Power Draw Bar System for R-8 or 30 Taper.........$790.00
Webb-1036
Maxi Torque Power Draw Bar System for 40 Taper................$890.00
Install Air Draw Bar .........................................$175.00
WEBB-1200
Coolant Pump System...........................................$695.00
WEBB-1205
Coolant/Chip Pan..............................................$495.00
Install Coolant Pump System...................................$300.00
Riser:
WEBB-2004....4” Riser Block with Hardware.....................$650.00
WEBB-2006 ...6” Riser Block with Hardware.....................$695.00
WEBB-2010....10” Rise Block with Hardware.....................$790.00
Installation..................................................$200.00
WEBB-3100....Precision Ground Ball screws X and Y Axis........$1,900.00
Power Feeds:
Servo Dynamo Power Table Feed:
SERVO Dynamo 150 Table Feed – Longitudinal....................$695.00
SERVO Dynamo 150 Table Feed – Cross...........................$790.00
SERVO Dynamo 150 Table Feed – Knee............................$790.00
SERVO 150 Inch Pound Table Feed - Longitudinal................$880.00
SERVO 150 Inch Pound Table Feed – Cross.......................$1,146.00
SERVO 200 Inch Pound Table Feed – Knee “ 200 Series”..........$1,390.00
WEBB Factory Power Knee Feed Super Duty 4 and 5 Series ONLY...$1,890.00
Table Feed Installation ......................................$150.00
Cross Feed Installation ......................................$225.00
Knee Feed Installation........................................$425.00
Tooling:
WEBB -1111
11 Piece R8 Collet Set, 1/8 to ¾ by 16ths Pro Series..........$179.00
WEBB-1126
6” Precision Machinist Vise ..................................$680.00
6” Precision Vise Economy.....................................$570.00
WEBB- 1152....52 Piece Work Hold Down Clamp Set...............$149.00
WEBB..1170-8..8 Inch Rotary Table / Vertical and Horizontal...$895.00
WEBB..1170-8..10 Inch Rotary Table / Vertical and Horizontal..$1,190.00
WEBB..1170-12.12 Inch Rotary Table /Vertical and Horizontal...$1,390.00
D.R.O. System:
Newall 2 Axis Table, Cross Installed .........................$3,450.00
Newall 3 Axis Table, Cross And Knee Installed.................$4,150.00
Mitutoyo Digi-matic Quill Scale With Bracket Installed........$650.00
Voltage:
440 Volts 3 Phase.............................................$225.00
Freight:
Freight Estimate From California .............................$2,350.00

ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
