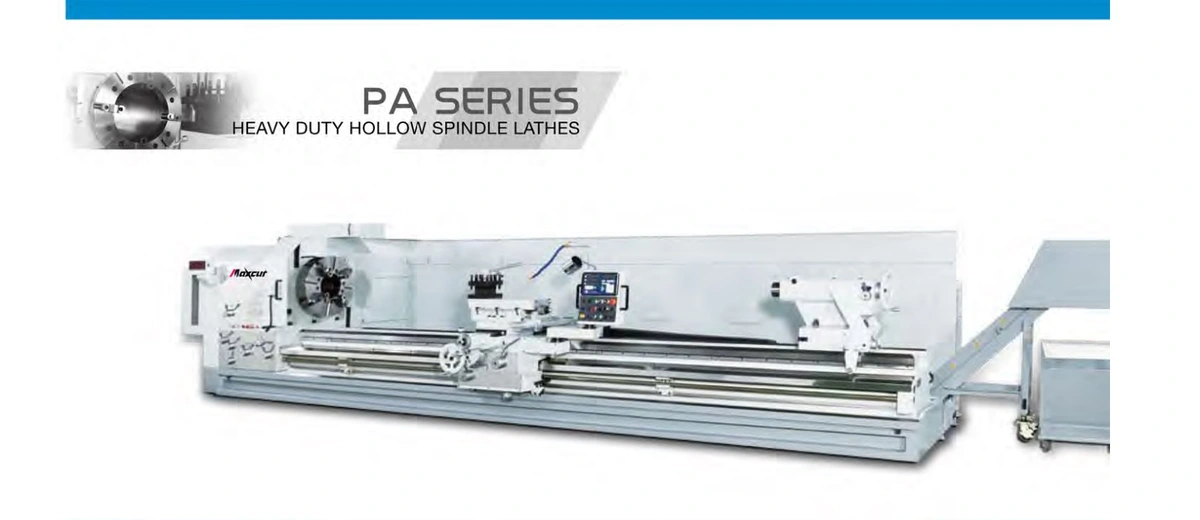

New MAXCUT PA 45X480 | New Machinery, Engine Lathes

Swing Over Bed Ways 45"
Swing Over Cross Slide 34.44"
Swing In Gap 62.99"
Length Of Gap 23.62"
Bed Way Width 25.98"
Center Distance 480"
Load Between Centers Without Steady Rest 7,700 Lbs.
Load Between Centers With Steady Rest 9,900 Lbs.
Spindle Hole 6"
Compound Rest Travel 17.7"
Cross Slide Travel 23.67"
4=Way Tool Post Width 8.07"
Spindle Speeds (18 Steps) 7 To 700 Rpm's
Spindle Nose A2-11
Spindle Taper # 5 Morse
Chuck Size 32" 3-Jaw
Chuck Size (One Piece Jaw Type) 32" 4-Jaw
Feeds Cross .0009 To .05 IPR
Feeds Long .0018 To .1 IPR
Threads Inch (60) 1/2 To 28 TPI
Threads Metric (60) 1 To 56 MM
D.P. (60) 1 To112 MM
Module (60) .025 To 14 TPI
Lead Screw Pitch 2 TPI
Rapid Traverse Longitudinal 78.74 IPM
Rapid Traverse Cross 50 IPM
Tail Stock Quill Diameter 4.52"
Tail Stock Quill Travel 7.87"
Tail Stock Taper # 6 Morse
Steady Rest Roller Type 18"
Steady Rest Roller Type (2) 25"
Main Motor 30 Hp.
Machine Dimension Length X Width 565" L X 72" W
Machine Height 72"
Weight 28,500 Lbs.
4- Way Rapid Traverse
Coolant Pan
Thread Dial
Hardened And Ground Ways
Standard Steady Rest
Follow Rest
Telescopic Taper Attachment
Newall OR Fagor 2 Axis DRO
