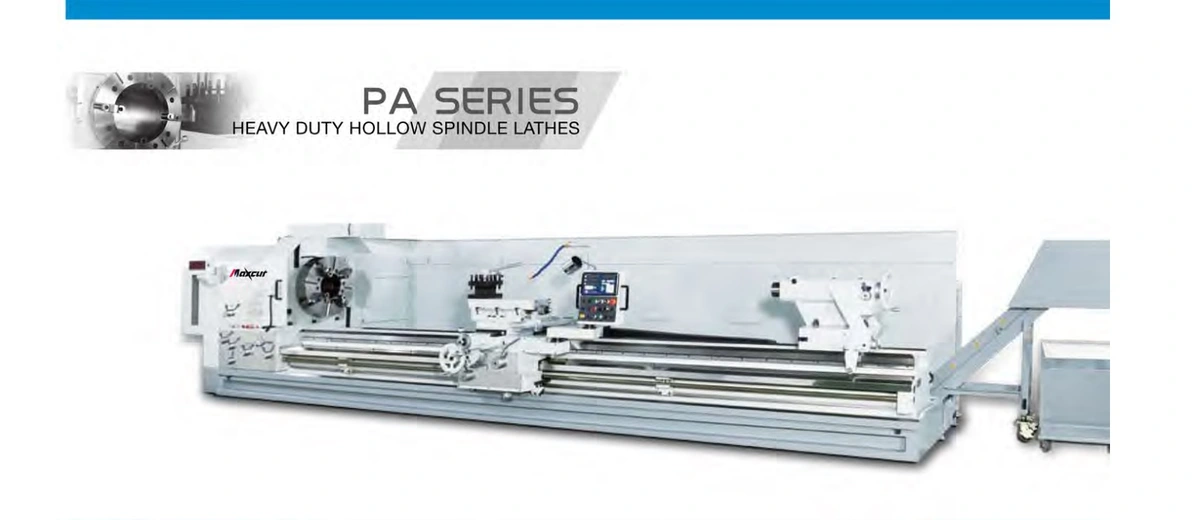

40" X 480" Maxcut PA Series Heavy Duty Lathes

Swing Over Bed Ways 40"
Swing Over Cross Slide 29.33"
Swing In Gap 57.87"
Length Of Gap 23.62"
Bed Way Width 25.98"
Center Distance 480"
Load Between Centers Without Steady Rest 7,700 Lbs.
Load Between Centers With Steady Rest 9,900 Lbs.
Spindle Hole 6"
Compound Rest Travel 17.7"
Cross Slide Travel 23.67"
4-Way Tool Post Width 8.07"
Spindle Speeds (18 Steps) 7 To 700 Rpm's
Spindle Nose A 2-11
Spindle Taper # 5 Morse
Chuck Size 32" 3-Jaw
Chuck Size (One Piece Jaw Type) 32" 4-Jaw
Feeds Cross .0009 To .05 I.P.R.
Feeds Long .0018 To .1 I.P.R.
Threads Inch (60) 1/2 To 28 T.P.I.
Threads Metric (60) 1 To 56 MM
D.P. (60) 1 To 112 MM
Module (60) .025 To 14 T.P..I
Lead Screw Pitch 2 T.P.I.
Rapid Traverse Longitudinal 78.74 I.P.M.
Rapid Traverse Cross 50 I.P.M.
Tail Stock Quill Diameter 4.52"
Tail Stock Quill Travel 7.87"
Tail Stock Taper # 6 Morse
Steady Rest Roller Type 18"
Steady Rest Roller Type (2) 25"
Main Motor 30 Hp.
Machine Dimension Length X Width 565"L X 72" W
Machine Height 72"
Weight 26,500 Lbs.
4- Way Rapid Traverse
Coolant Pan
Thread Dial
Hardened And Ground Ways
Standard Steady Rest
Follow Rest
Telescopic Taper Attachment
Optional:
Newall Or Fagor 2 Axis DRO
