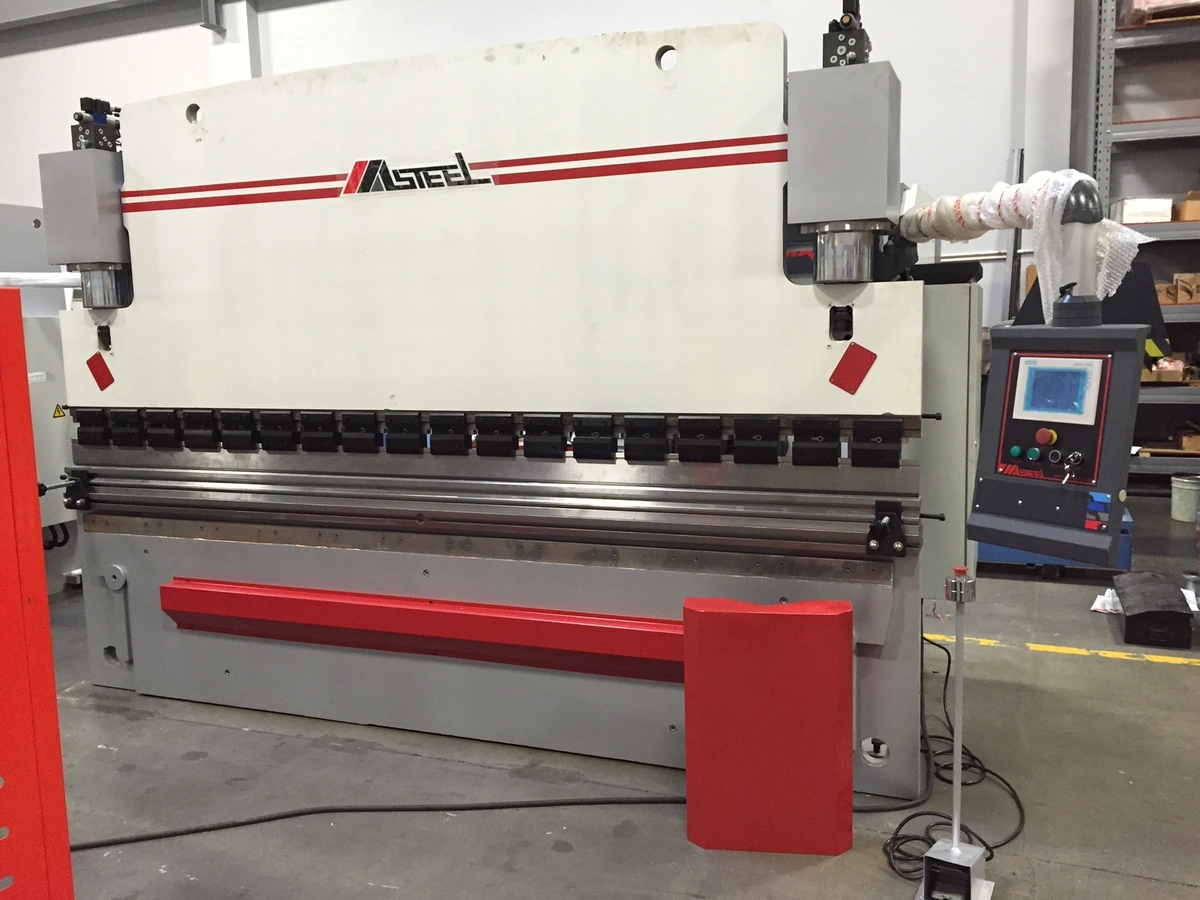

New MASTEEL MBHSA-10190 | New Machinery, Press Brake

Control Features

MASTEEL AMERICA CORP
Standard SIEMENS TP-700 control with 7" touch screen display.
SIEMENS CNC control with Y1/Y2/X/R/Z1/Z2 position control, R and Z1/Z2 axis as options.
Ram bending position control Y1/Y2 axis:
Y1, Y2 programmable independently in angle or position.
Ram tilt capacity at ±0.5".
Bosch-Rexroth closed-loop proportional hydraulic position
control: repeatability at ±0.0006".
Servo driven back gauge position control:
Standard CNC back gauge: Speed at 400 IPM; Repeatability at ±
0.003’’.
Optional R axis CNC control.
Optional CNC Z1/Z2 axis or power operated Z1/Z2 axis.
Programmable back gauge retract feature.
3-step finger position with automatic offset on X axis.
Two way angle corrections - allow inexperienced operator to
achieve desired angles without multiple test bends.
Input of the difference from desired angle to test bending,
control will automatically adjust the bending position to
achieve desired angle.

Adjust bending position with Y axis incremental per degree
calculated by control system.

Dual ram position feedback with hydraulic synchronized control
allow bending at one end of brake for deep box

Tool memory for quick recall of tool setup
200 job memory, with an average of 30 bends per program.
Programmable tonnage control
Programmable ram delay and programmable tonnage at the
Bending position for bump bending or heavy bending applications

Automatic maintenance schedule reminders

Operating prompts and troubleshooting messages
Inch / MM conversion

Standard Masteel Back Gauge
Bosch
Rexroth
Hydraulic
Control
