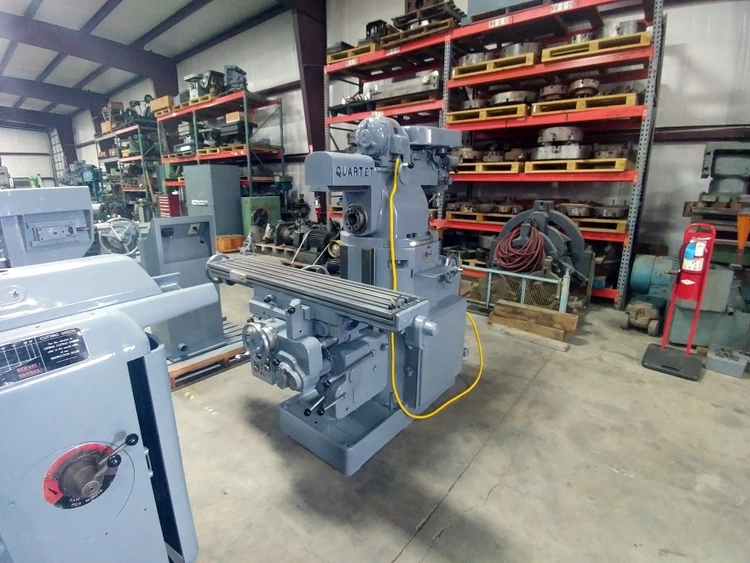

12" X 54" Used Quartet Horizontal Milling Machine With Independent Vertical Head

Table Size.........................................12" X 54"
Table Travel.......................................30"
Table Cross Travel.................................10"
Knee Travel Up & Down..............................12"
Spindle Taper Horizontal...........................# 50
Spindle Speeds Horizontal Low Range................30 To 200 Rpm's
Spindle Speeds Horizontal High Range...............220 To1,300 Rpm's
Spindle Taper Vertical.............................30 Taper
Spindle Speeds Vertical............................63 To 2,100 Rpm's
Spindle To Table Min / Max.........................4-3/4" 14-1/2"
Saddle And Table Feeds.............................3/8 To 90 I.P.M.
Rapids Long. & Cross...............................150 I.P.M.
Rapids Knee........................................37-1/2 I.P.M.
Main Motor Main....................................5 Hp.
Main Motor Vertical................................1 Hp.
Machine Space......................................R-L 72" X F-B 72"
Machine Height.....................................84"
Weight.............................................6,500 Lbs.
Swiveling Base Yes
Coolant Yes
