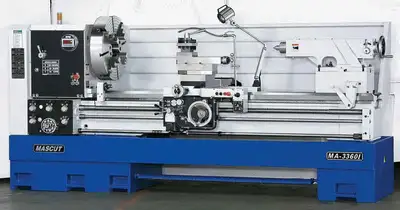

33" X 60" New Webb Heavy-Duty Engine Lathe

33" X 60" New Webb Heavy-Duty Engine Lathe
Swing Over Bed Ways.....................................30"
Swing Over Cross Slide..................................19.6"
Swing In Gap............................................38.5"
Width Of Bed............................................17.7"
Cross Slide Travel......................................17.7
Compound Travel.........................................9.8"
Center Distance.........................................60"
Spindle Hole............................................4"
Spindle Speeds..........................................23 To 1,293 Rpm's
Spindle Nose............................................A1-11
Feeds Cross.............................................0.025 To 0.35 MM IPR
Feeds Long..............................................0.05 To 0.70 MM IPR
Threads Inch............................................2 To 28 T.P.I.
Threads Metric..........................................0.8 To 14 MM
D.P.....................................................4 To 56 T.P.I.
Module..................................................0.5 To 7 M
Lead Screw Diameter And Threads.........................2 TPI
Tail Stock Quill Diameter...............................4.1"
Tail Stock Quill Travel.................................8.6"
Tail Stock Taper........................................# 5 Morse
Coolant Pump Motor......................................1/8 Hp.
Main Motor .............................................15 Hp.
Machine Length .........................................144"
Machine Width ..........................................72"
Machine Height..........................................72"
Machine Weight..........................................7,386 Lbs.
Rapid Traverse Long.....................................118" / 59" Min.

Machine Options:
All prices and specifications are subject to change without notice:
MA 33” Series Upgrade to 20 HP..........................$2,490.00
MA 33” Inverter Head with CSS and PLC for 15 HP........ $10,870.00
MA 33” Inverter Head with CSS and PLC for 20 HP.........$12,970.00
MA 33” Series 6“ Spindle Bore A2-11 Mount...............$9,500.00
MA 33” Series 9” Spindle Bore A2-15 Mount...............$19,860.00
MA 33” Series 12” Spindle Bore A2-15 Mount..............$48,600.00
MA 33” Series Double Chuck System Rear Adaptor Plate....$2,890.00
MA 33” Series Steady Rest Roller type...................$1,690.00
Follow Rest.............................................$780.00
Micrometer Carriage Stop................................$490.00
5 Position Micrometer Carriage Stop.....................$590.00
Taper Attachment........................................$2,990.00
Installation of taper attachment........................$550.00
Full Length Splash Guard 60” and 80” Centers Machine....$895.00
Full Length Splash Guard 120” Centers Machine...........$1,095.00

Digital Read Outs – Acu-Rite and Newall
Newall 2 Axis Digital readout System ...................$7,350.00
Chucks:
3-JAW 12” A1-11.........................................$1,890.00
4-JAW 16” A1-11.........................................$2,890.00
4-JAW 20” A1-11.........................................$3,490.00
20” Face Plate A1-11....................................$1,160.00
Gator Chucks:
Semi-Steel
20” 4-Jaw A2-11 with 2-piece jaws 1-311-2011...........$3,611.00
24” 4-Jaw A2-11 with 2-piece jaws 1-311-2511...........$6,978.00
Semi-Steel
15” 3-Jaw A2-11 with 2-piece jaws 1-211-1611...........$2,624.00
20” 3-Jaw A2-11 with 2-piece jaws 1-211-2011...........$5,933.00
Steel Body
20” 3-Jaw A2-11 with 2-piece jaws 1-115-2011...........$8,947.00

Tooling:
Aloris DA Tool Post Type with 5 Holder..................$3,450.00
Voltage:
Rewire to 440V..........................................$450.00

All prices and specifications are subject to change without notice:
