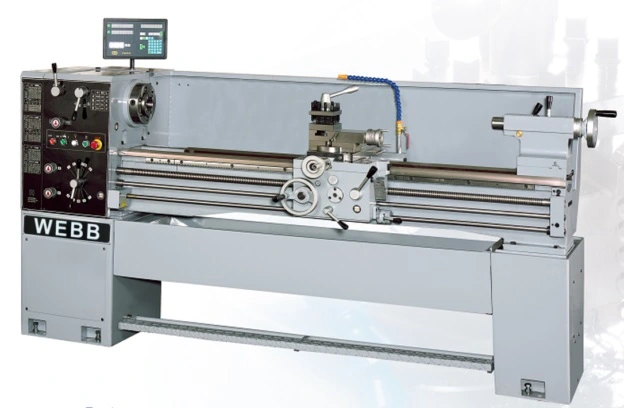

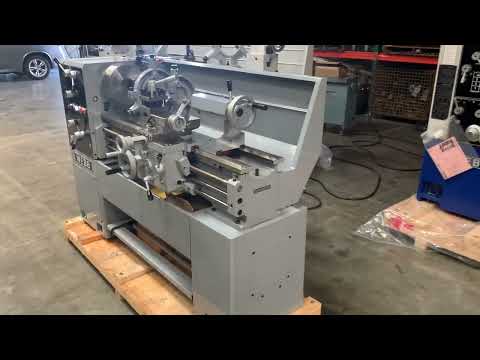

16" X 60" New Webb Engine Lathe
Have one to sell?
ConditionNew
New
16" X 60" New Webb Engine Lathe
Swing Over Bed Ways 16"
Swing Over Cross Slide 9-1/2"
Swing In Gap 21-3/4"
Bed Width 10"
Center Distance 60"
Compound Travel 3-9/16"
Cross Slide Travel 8"
Spindle Hole 2-3/16"
Spindle Speeds (12) 50 To 2,000 Rpm's
Spindle Nose D1-6
Chuck Size 8" 3-Jaw
Chuck Size 10" 4-Jaw
Feeds Cross 0.04 To .52 IPR
Feeds Long (32) .0017 TO .0242 2IPR
Threads Inch 4 To 56 TPI
Threads Metric .4 To 7.0 MM
Lead Screw 1"
Tail Stock Quill Diameter 2-1/2"
Tail Stock Quill Travel 4-3/8"
Tail Stock Taper # 4 Morse
Main Motor 5 Hp.
Machine Dimension 102" L X 34" W
Machine Height 60"
Weight 3,300 Lbs.
Inch And Metric Dials
Coolant Pan And Pump
Full Length Splash Guard
Thread Dial
Foot Brake
Foundation Pads
Prices Subject To Change Without Notice:
Optional Machine
Accessories Description Retail Price
Quick Change Tool Post with 5 Holders $890.00
Taper Tuning Attachment $1,690.00
Installation of Taper Attachment $300.00
Face Plate 14” $395.00
2 Axis Acu-Rite DRO for X and Y Axis $2,690.00
Installation of Any 2 Axis DRO $400.00
2 Axis Newall DRO for X and Y Axis $2,990.00
Installation of Any 2 Axis DRO $400.00
Work Light (110V, 55W) $190.00
Single Saddle Stop $225.00
JFK 5-C Collet Closure $2,090.00
Install Collet Closure $225.00
Steel Body 10" 3-Jaw D1-6
with two-piece jaws $3,073.00
New Gator Adjust True 10" 6-Jaw Steel Body $2,964.00
New Gator Adjust True 10" 6-Jaw Semi Steel $2,148.00
Adaptor Plate D1-6 $1,200.00
One Year Parts Warranty
Standard Features of WB 1640G/1660G:
Bed is made of high tensile case iron FC25, hardened and ground bedways, gears and shafts on headstock are hardened and precisely ground, emergency foot brake is equipped for cutting thepower and stopping the machine immediately, open type chip pan designed to remove chips, starting lever with safety device, apron is equipped with an interlock safety device to prevent feeding inter-gearing on the automatic feed and half-nut operation, overload safety device is equipped to shut off feeding automatically when the longitudinal or cross feeding is overloaded or touching and obstacle.
Each 1640G/1660G Machine Includes the Following Standard Accessories
5HP 3PH main drive motor, D1-6 back plate 8" (200mm) & 10" (250 mm), MT 4 center, MT 6x4 center sleeve, 4-way tool post, complete electric control unit, change gears, 1/8 coolant pump, rear splash guard, rapid foot brake, toolbox & kits, steady rest, follow rest, 3-Jaw scroll chuck 8"(200mm), 4-Jaw independent chuck 10" (250mm), face plate 10"(250mm), Operators and Parts Manuals.
