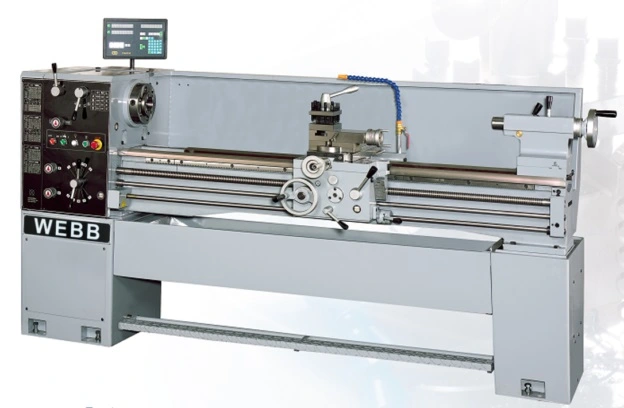

16" X 40" New Webb Engine Lathe

Model No. 1640
Swing Over Bed 400mm (16”)
Swing Over Cross Slide 242mm (9 ½”)
Swing Over Gap 552mm (21 ¾”)
Distance Between Centers 1000mm (40”)
Bed Width 260mm (10”)
Number of Spindle Speeds 12
Range of Spindle Speeds 50-2000 RPM
Bore Through Spindle 55mm (2 3/16”)
Spindle Nose D1-6 Camlock
Taper of Spindle Nose MT 6
Tailstock Quill Taper MT 4
Tailstock Quill Travel 110mm (4 3/8”)
Cross Slide Travel 200mm (8”)
Compound Rest Travel 90mm (3 9/16”)
Metric Threads (32 Numbers) 0.4-7.0mm Pitch
Inch Threads (32 Numbers) 4-56 TPI
Module Threads (32 Numbers) 8-120 D.P.
D.P. Threads (32 Numbers) 8-120 D.P.
Longitudinal Feeds 0.029-0.412mm/rev (0.0017”-0.0242”/rev)
Dimensions Width & Length 34" X 82"
Height 60"
Gross Weight 3,100 Lbs.
Main Spindle Motor 5HP (3.7 kW)
Coolant Pump Motor 1/8 HP
Steady Rest Yes
Inch And Metric Dials Yes
Coolant Pan And Pump Yes
Full Length Splash Guard Yes
Thread Dial Yes
One Year Parts Warranty

Prices Subject To Change Without Notice:
Optional Machine
Accessories Description Retail Price
Quick Change Tool Post with 5 Holders $890.00
Taper Tuning Attachment $1,690.00
Installation of Taper Attachment $300.00
Face Plate 14” $395.00
2 Axis Acu-Rite DRO for X and Y Axis $2,890.00
Installation of Any 2 Axis DRO $400.00
2 Axis Newall DRO for X and Y Axis $2,990.00
Installation of Any 2 Axis DRO $400.00
Work Light (110V, 55W) $190.00
Single Saddle Stop $225.00
JFK 5-C Collet Closure $2,090.00
Install Collet Closure $225.00
