New 30" X 160" Webb Engine Lathe
Have one to sell?
ConditionNew
New

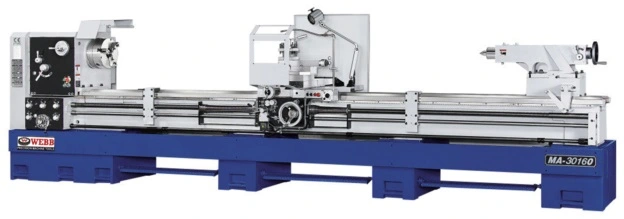

30" X 160" New Webb Engine Lathe
Features:
WEBB MA 30 X 160G HEAVY DUTY HIGH SPEED PRECISION GAP BED LATHE
4-1/8" SPINDLE BORE,
D-2-11 MOUNT,
18 SPEED HEAD STOCK,
RAPID TRAVERSE ON APRON,
MEEHANITE CASTING, TURCITE COATED SLIDE WAYS
ROLLER STEADY REST,
INCH / METRIC DIALS AND THREADING
AUTO LUBE SYSTEM IN APRON
FULL LENGTH SPLASH GUARD , COOLANT SYSTEM
SQUARE TOOL POST,
15 H.P. MAIN MOTOR, 220/440 VOLTS ELECTRICS
EXCLUSIVE IMPORTER FROM OUR LATHE MFG SINCE 1985. 7,500 SOLD IN USA.
HIGHEST QUALITY MACHINE TOOLS SOLD IN THE USA.
30" X 160" New Webb Engine Lathe
Swing Over Bed Ways.....................................30"
Swing Over Cross Slide..................................19.6"
Swing In Gap............................................38.5"
Width Of Bed............................................17.7"
Cross Slide Travel......................................17.7
Compound Travel.........................................9.8"
Center Distance.........................................160"
Spindle Hole............................................4"
Spindle Speeds..........................................23 To 1,293 Rpm's
Spindle Nose............................................D1-11
Feeds Cross.............................................0.025 To 0.35 MM IPR
Feeds Long..............................................0.05 To 0.70 MM IPR
Threads Inch............................................2 To 28 T.P.I.
Threads Metric..........................................0.8 To 14 MM
D.P.....................................................4 To 56 T.P.I.
Module..................................................0.5 To 7 M
Lead Screw Diameter And Threads.........................2 TPI
Tail Stock Quill Diameter...............................4.1"
Tail Stock Quill Travel.................................8.6"
Tail Stock Taper........................................# 5 Morse
Coolant Pump Motor......................................1/8 Hp.
Main Motor .............................................15 Hp.
Machine Length .........................................144"
Machine Width ..........................................72"
Machine Height..........................................72"
Machine Weight..........................................7,386 Lbs.
Rapid Traverse Long.....................................118" / 59" Min.
Machine Options:
All prices and specifications are subject to change without notice:
MA 30” Series Upgrade to 20 HP..........................$2,490.00
MA 30” Inverter Head with CSS and PLC for 15 HP........ $10,870.00
MA 30” Inverter Head with CSS and PLC for 20 HP.........$12,970.00
MA 30” Series 6“ Spindle Bore A2-11 Mount...............$9,500.00
MA 30” Series 9” Spindle Bore A2-15 Mount...............$19,860.00
MA 30” Series 12” Spindle Bore A2-15 Mount..............$48,600.00
MA 30” Series Double Chuck System Rear Adaptor Plate....$2,890.00
MA 30” Series Steady Rest Roller type...................$1,690.00
Follow Rest.............................................$780.00
Micrometer Carriage Stop................................$490.00
5 Position Micrometer Carriage Stop.....................$590.00
Taper Attachment........................................$2,990.00
Installation of taper attachment........................$550.00
Full Length Splash Guard 60” and 80” Centers Machine....$895.00
Full Length Splash Guard 120” Centers Machine...........$1,095.00
Digital Read Outs – Acu-Rite and Newall
Newall 2 Axis Digital readout System ...................$9,350.00
Chucks:
3-JAW 12” D-1-15 CAM LOCK MOUNT.........................$1,890.00
3-JAW 16” D-1-15 CAM LOCK MOUNT.........................$2,790.00
4-JAW 16” D-1-15 CAM LOCK MOUNT.........................$2,590.00
4-JAW 20” D-1-15 CAM LOCK MOUNT.........................$3,490.00
20” Face Plate D-1-11...................................$1,160.00
Gator Chucks:
Chuck Size 12" 3-Jaw D-1-15 Cam Lock Mount..............$1,890.00
Chuck Size 16" 4-Jaw D-1-15 Cam Lock Mount..............$2,290.0
Gator Chuck Size 16" 3-Jaw with 2 piece jaws D-1-11 Cam Lock
Mount Steel Body........................................$3,950.00
Gator Chuck Size 20" 4-Jaw with 2 piece jaws
D-1-15 Cam Lock Mount Semi-Steel Body...................$3,295.00
Chuck Size 24" 4-Jaw With 2 Piece Top Jaws Semi-Steel...$6,850.00
Tooling:
Aloris DA Tool Post Type with 5 Holder..................$3,450.00
Voltage:
Rewire to 440V..........................................$450.00
All prices and specifications are subject to change without notice:
WEBB 30 and 33 Swing MASSIVE CUT Engine Lathes
WEBB Lathes are 100% Taiwan Built Machines with an Unmatched Reputation for Long Service.
We maintain a Complete Inventory of Parts. Friendly Staff for Over 40 Years!
Each Machine Includes the Following Standard Features
Heavy Duty Certified Meehanite Castings, Removable Gap Bed, Turcite Coated Female Surface’s, Inch /Metric Dials, Automatic Forced Lubrication, Tail Stock, A2-11 Spindle, 4" Spindle Bore, 20 HP, Inch Metric Threading, Flood Coolant, Rear Chip Guard, Longitudinal Adjustable Stop, Center Sleeve, 2 Dead Centers, Touch Up Paint, Adjustment Tools, Operators and Parts Manuals.
NOW Optionally Available with Inverter Head and Constant Surface Speed Via PLC
