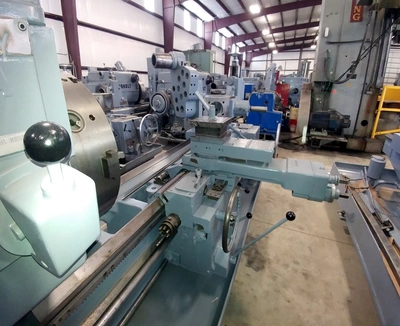

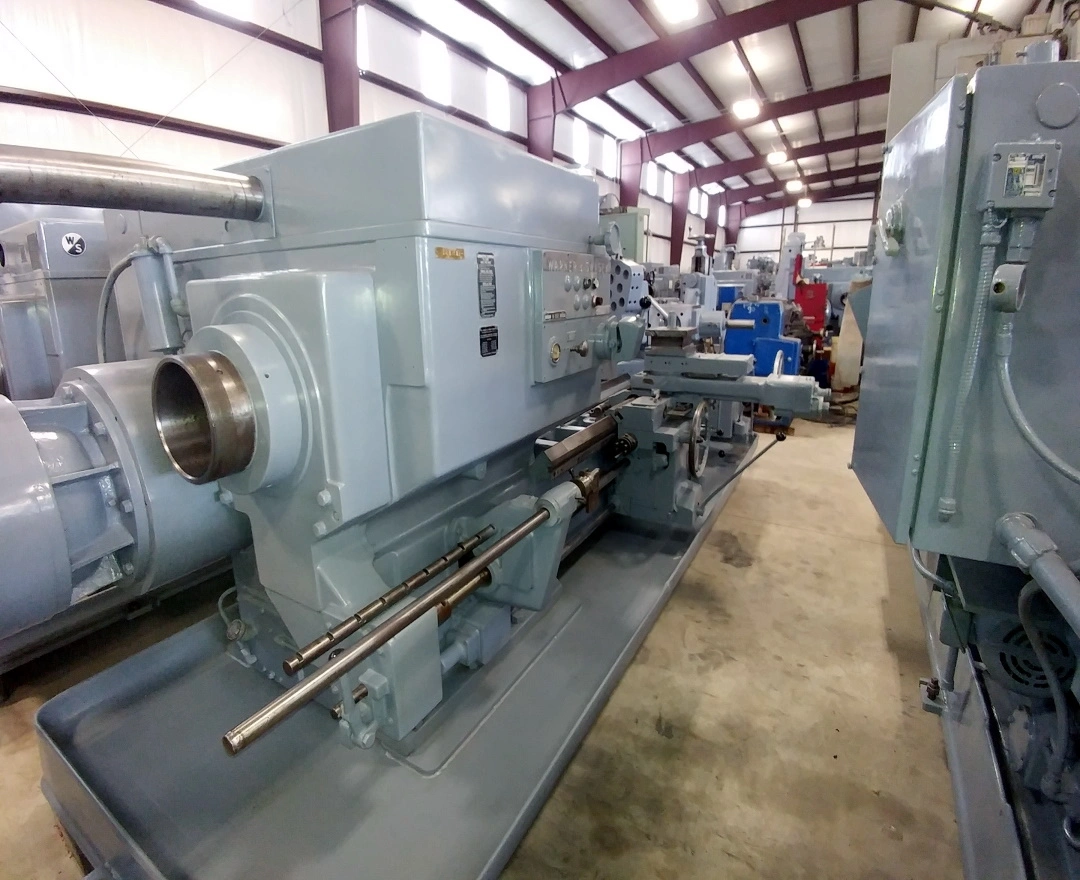

4 A Used Warner & Swasey Square Head Saddle Type Turret Lathe

Swing Over Bed Ways.......................................28-1/4"
Swing Over Cross Slide Carriage...........................22"
Center Distance...........................................62"
Spindle Hole..............................................9-1/4"
Spindle Speeds............................................20 To 526 Rpm's
Spindle Nose..............................................A-15
Chuck Size (New Heavy Duty)...............................24" 4- Jaw New Gator
Feeds Cross...............................................0.005 To 0.090 I.P.R.
Feeds Long................................................0.005 To 0.167 I.P.R.
Main Motor Hp.............................................75 / 37.5
Floor Space Right To Left.................................22'
Floor Space Front To Back.................................7'
Machine Height............................................84"
Weight....................................................24,000 Lbs.
Flange Holders............................................4
Tool Post 4 Way On Front..................................Yes
Rapid Traverse Front And Rear.............................Yes
Fixed Rear Turret.........................................Yes
Full Chip Pan And Coolant.................................Yes

Note:
Machine has been reconditioned.
Reconditioning:
Machines front & rear aprons and rapid traverse box reconditioned.
Rapid traverse drive box reconditioned.
New bearings in main motor.
New feed and rapid shafts.
Headstock cleaned and flushed, new filters and oil.
New lockdown pin and bushing in hex and square turret.
New nut and screw in cross slide..
Gibs reworked and refitted.
New 20"4-jaw Gator chuck with reconditioning.
It is recommended that you re-bore the flange tool holders on the rear turret
to ensure they are on center once the machine is level.
Machine has been cleaned, painted, and cycled.
Machine may be seen under power with proper notice.
