New MAXCUT VMC 1300 | New Machinery, CNC Vertical Machining Centers
Have one to sell?
ConditionNew
New

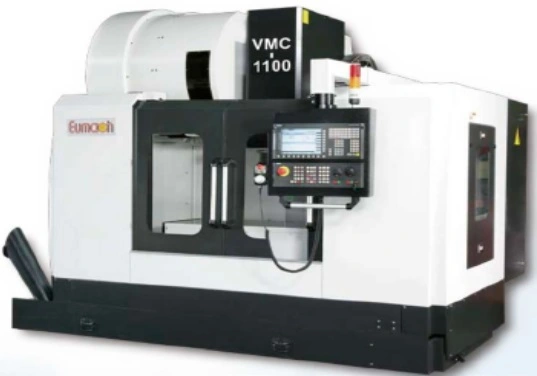

24" X 50" Max Cut CNC Vertical Machining Center Package
HIGH LIHGHT STANDARD FEATURES + INCLUDED EQUIPMENT
Fanuc 0iMF control with 8.4” color screen
X/Y/Z travel : 1300mm (51.18”) / 710mm (28”) / 710mm (28”)
2 speed gear drive for spindle: 1:1.1 and 1:4.4 for heavy duty cut
rigid tapping
full enclosure chip + coolant guarding
steel belt type lift-up chip conveyor
box ways for heavy duty cutting and heavy part support
precision ground ball screws
automatic lubrication with automatic low lubrication alarm
portable manual pulse generator (electronic handwheel)
coolant system
20bar (290 psi) through spindle coolant system with separate tank
wash down coolant flush
4th axis preparation
automatic lubrication
Control...........................................Fanuc Oi/MFWith 8.4" Color Screen
Table Size........................................24.4" X 50"
Table Height......................................35.2"
Table Load........................................2,650 Lbs.
Travel Y Axis.....................................50"
Travels X Axis....................................25"
Travel Z Axis.....................................24"
Spindle Taper.....................................# 50
Spindle Bearing Inside Diameter...................3.54"
Spindle Speed.....................................6,000 Rpm's
Spindle Center To Column..........................25.9"
Spindle Nose To Tabletop..........................4.3" To 28.3"
Spindle Motor.....................................15/20 Hp.
X Axis Motor......................................14.84 Nm
Y Axis Motor......................................14.84 Nm
Z Axis Motor......................................27.34 Nm
Coolant Motor.....................................3/4 Hp.
Feed Rate X/Y/Z...................................600 IPM
Rapid Rate X/Y/Z..................................1,000 IPM
Positioning Accuracy +/-..........................0.015 MM
Repeatability +/-.................................0.01 MM
Number Of Tools...................................24
Tool Select By Shortest Path Bi-Directional
Max. Tool Weight..................................33 Lbs.
Max. Tool Diameter................................4.9"
Max. Tool Diameter (Adjacent Pocket)..............2.76"
Max. Tool Length..................................11.81"
Machine Length X Width............................132" X 100"
Machine Height....................................112"
Floor Space.......................................207" X 128"
Machine Weight....................................18,700 Lbs.
55 Gallon Coolant Tank............................Yes
Coolant Thru Spindle..............................Yes
Chip Auger And Bucket.............................Yes
Rigid Tapping.....................................Yes
Wash Down System..................................Yes
Portable MPG......................................Yes
Large Fully Groundwork Table......................Yes
Precision Ground Ball Screw.......................Yes
Heavily Ribbed Cast Iron Components...............Yes
One Piece Box Base With Internal Design...........Yes
Heavy Duty Box Ways...............................Yes
Telescopic Way Covers.............................Yes
Heat Exchanger....................................Yes
Automatic Lubrication W/Low Lubrication Fault.....Yes
Low Voltage Circuit System........................Yes
Quick programming of helical taper interpolation or helical threading
Inside/outside taper boring cycle
Solid box ways (4 on the Y-axis)
Rigid tapping
20bar
Coolant through the spindle
full enclosure with removable side doors
belt type lift-up chip conveyor
portable Manual pulse generator (electronic hand wheel)
Warranty: NEW EQUIPMENT: 2-year Parts 2 years on Control
Travel & accommodations and labor extra cost.
All electrics warranted by manufacturer. All parts are FOB Vancouver unless otherwise specified. All shipments are by ground transport. Fuses, wipers, and other normal wear items are not covered under this warranty.
NOTE: All specifications are approximate and are not binding in any way. We endeavor to make information as complete and accurate as possible. If you notice a discrepancy, please let one our salespeople know so that the error can be changed.
Prices shown are in US funds.
Delivery to be confirmed at the time of purchase.
The above pricing is F.O.B. Masteel in Mississauga/Oakville, Ontario.
Any applicable taxes are extra.
The payment terms are 30% with order, 60% on pick up and balance 30 days after delivery.
Warranty is two (2) years on parts & labor.
Delivery
*CUSTOMER’S RESPONSIBILITY
- Pick-up the machine at Masteel in Oakville, Ontario.
- Off load the machine from the truck at the customer’s site.
- Move the machine into place for assembly.
- Foundation per requirements.
- Power to the machine.
- Hydraulic + way lube oil plus coolant fluid for the machine.
*MASTEEL’S RESPONSIBILITY
- Assemble / level the machine on the customer’s shop floor and anchor the machine to the customer supply foundation drawing if required.
- Complete the machine installation and accuracy test.
- One day of basic machine operator training.
Pre-Start Health and Safety Review (PHSR) is the responsibility of the customer and is not included in the above pricing.
This proposal is valid for thirty (30) days.
24" X 50" Max Cut CNC Vertical Machining Center Package
HIGH LIHGHT STANDARD FEATURES + INCLUDED EQUIPMENT
Fanuc 0iMF control with 8.4” color screen
X/Y/Z travel : 1300mm (51.18”) / 710mm (28”) / 710mm (28”)
2 speed gear drive for spindle: 1:1.1 and 1:4.4 for heavy duty cut
rigid tapping
full enclosure chip + coolant guarding
steel belt type lift-up chip conveyor
box ways for heavy duty cutting and heavy part support
precision ground ball screws
automatic lubrication with automatic low lubrication alarm
portable manual pulse generator (electronic handwheel)
coolant system
20bar (290 psi) through spindle coolant system with separate tank
wash down coolant flush
4th axis preparation
automatic lubrication
Imperial
| Table-W | 24.4" |
| Table-L | 50" |
| Z | 24" |
| X | 25" |
| Y | 50" |
| # Axis | 3 |
| Taper | 50 |
| RPM | 6,000 RPM |
| Power | 15 hp |
| # ATC | 24 |
| Control | CNC (Fagor) |
| Dimensions | R-L 207" X F-B 128" X 112" High |
| Weight | 18,700 Lbs. |
Control...........................................Fanuc Oi/MFWith 8.4" Color Screen
Table Size........................................24.4" X 50"
Table Height......................................35.2"
Table Load........................................2,650 Lbs.
Travel Y Axis.....................................50"
Travels X Axis....................................25"
Travel Z Axis.....................................24"
Spindle Taper.....................................# 50
Spindle Bearing Inside Diameter...................3.54"
Spindle Speed.....................................6,000 Rpm's
Spindle Center To Column..........................25.9"
Spindle Nose To Tabletop..........................4.3" To 28.3"
Spindle Motor.....................................15/20 Hp.
X Axis Motor......................................14.84 Nm
Y Axis Motor......................................14.84 Nm
Z Axis Motor......................................27.34 Nm
Coolant Motor.....................................3/4 Hp.
Feed Rate X/Y/Z...................................600 IPM
Rapid Rate X/Y/Z..................................1,000 IPM
Positioning Accuracy +/-..........................0.015 MM
Repeatability +/-.................................0.01 MM
Number Of Tools...................................24
Tool Select By Shortest Path Bi-Directional
Max. Tool Weight..................................33 Lbs.
Max. Tool Diameter................................4.9"
Max. Tool Diameter (Adjacent Pocket)..............2.76"
Max. Tool Length..................................11.81"
Machine Length X Width............................132" X 100"
Machine Height....................................112"
Floor Space.......................................207" X 128"
Machine Weight....................................18,700 Lbs.
55 Gallon Coolant Tank............................Yes
Coolant Thru Spindle..............................Yes
Chip Auger And Bucket.............................Yes
Rigid Tapping.....................................Yes
Wash Down System..................................Yes
Portable MPG......................................Yes
Large Fully Groundwork Table......................Yes
Precision Ground Ball Screw.......................Yes
Heavily Ribbed Cast Iron Components...............Yes
One Piece Box Base With Internal Design...........Yes
Heavy Duty Box Ways...............................Yes
Telescopic Way Covers.............................Yes
Heat Exchanger....................................Yes
Automatic Lubrication W/Low Lubrication Fault.....Yes
Low Voltage Circuit System........................Yes
Quick programming of helical taper interpolation or helical threading
Inside/outside taper boring cycle
Solid box ways (4 on the Y-axis)
Rigid tapping
20bar
Coolant through the spindle
full enclosure with removable side doors
belt type lift-up chip conveyor
portable Manual pulse generator (electronic hand wheel)
Warranty: NEW EQUIPMENT: 2-year Parts 2 years on Control
Travel & accommodations and labor extra cost.
All electrics warranted by manufacturer. All parts are FOB Vancouver unless otherwise specified. All shipments are by ground transport. Fuses, wipers, and other normal wear items are not covered under this warranty.
NOTE: All specifications are approximate and are not binding in any way. We endeavor to make information as complete and accurate as possible. If you notice a discrepancy, please let one our salespeople know so that the error can be changed.
Prices shown are in US funds.
Delivery to be confirmed at the time of purchase.
The above pricing is F.O.B. Masteel in Mississauga/Oakville, Ontario.
Any applicable taxes are extra.
The payment terms are 30% with order, 60% on pick up and balance 30 days after delivery.
Warranty is two (2) years on parts & labor.
Delivery
*CUSTOMER’S RESPONSIBILITY
- Pick-up the machine at Masteel in Oakville, Ontario.
- Off load the machine from the truck at the customer’s site.
- Move the machine into place for assembly.
- Foundation per requirements.
- Power to the machine.
- Hydraulic + way lube oil plus coolant fluid for the machine.
*MASTEEL’S RESPONSIBILITY
- Assemble / level the machine on the customer’s shop floor and anchor the machine to the customer supply foundation drawing if required.
- Complete the machine installation and accuracy test.
- One day of basic machine operator training.
Pre-Start Health and Safety Review (PHSR) is the responsibility of the customer and is not included in the above pricing.
This proposal is valid for thirty (30) days.
