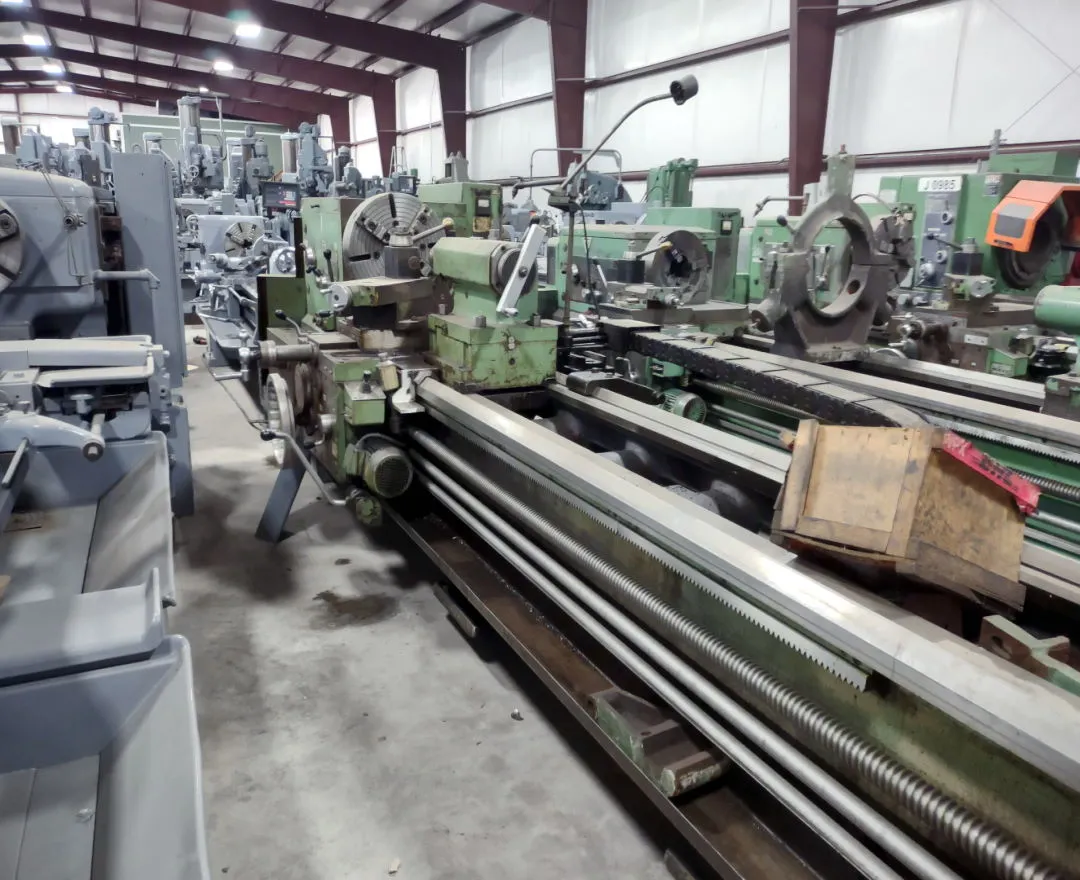

33"X 120" Stanko Heavy Duty Engine Lathe Model 16K40-3

Swing Over Bed Ways.................................33"
Swing Over Cross Slide..............................19.1"
Cross Slide Travel..................................16.75"
Swing In Gap........................................35.43" X 17.72" Long
Compound Travel.....................................8.6"
Compound Swivel.....................................+/- 90 Degrees
Center Distance.....................................118"
Weight Between Center...............................7,700 Lbs.
Spindle Hole........................................3-1/8"
Spindle Speeds......................................10 To 1,250 Rpm's
Spindle Nose........................................A1-11
New Gator...........................................16"3-Jaw Chuck With 2 Piece Jaws
New Gator...........................................20" 4-Jaw Chuck With 2 Piece Jaws
Feeds Compound......................................0007 To .017
Feeds Cross Slide...................................0.001 To .20
Feeds Carriage......................................0.0024 To .05
Threads Inch........................................1/4 To 28 TPI
Threads Metric......................................1 To 224 MM
Tail Stock Quill Diameter...........................3-1/2"
Tail Stock Quill Travel.............................9.4"
Tail Stock Taper....................................#6 Morse
Maine Motor.........................................20.4 Hp.
Floor Space.........................................R-L 226" X F-B 72"
Machine Height......................................62"
Weight..............................................12,584 Lbs.
Coolant Pan.........................................Yes
Taper Attachment....................................Yes
Thread Dial.........................................Yes
Rapid Traverse (6 Way)..............................Yes
Power Feeding Compound..............................Yes
Steady Rest.........................................Yes

Note:
Machine has just came in, it will take 4-6 weeks to process
the machine with a purchase order.
Headstock and apron will be cleaned and flush and new oil.
Cross slide, compound and taper
attachment will cleaned and checked.
Machine will be cleaned, painted and cycled.
Price after the above work it completed $54,500.00
Prices subject to change without notice.
Optional:
Newall 2 Axis D.R.O. System Installed............$7,450.00
