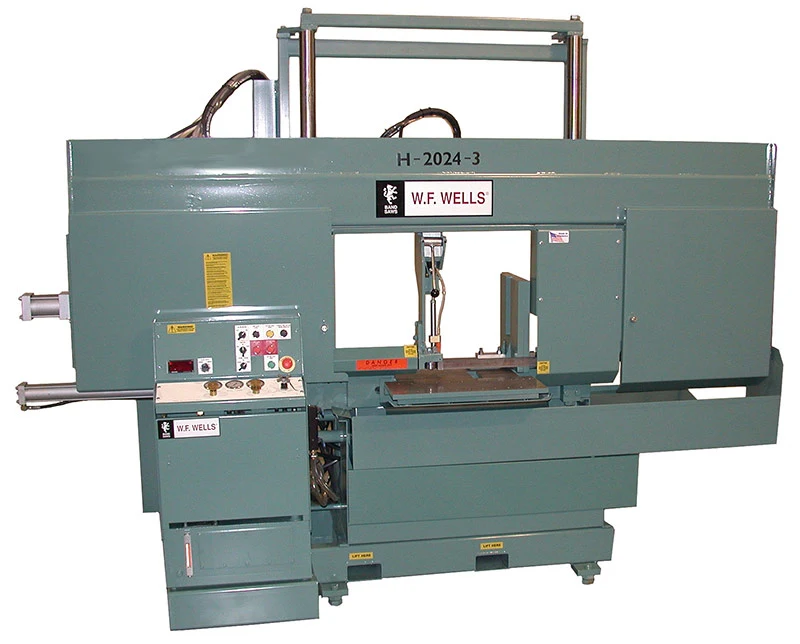

20"X24" W.F. Wells Dual Column Semi-Automatic Horizontal Saw Model H2024-3

Maximum Capacity Round 20"
Maximum Capacity Rectangular 24"
Maximum Capacity @ 90 Degrees 20"X24"
Weight Capacity 5,000 Lbs.
Work Height 35"
Blade Wheel Size 20"
Blade Size 1-1/2" X .050 X20'
Blade Speed 60 To 500 SFPM
Sawing Force 0 To 750Lbs.
Vise Full Stroke Hydraulic 15"
Coolant Capacity 15 Gallons
Hydraulic Capacity 20 Gallon
Hydraulic Motor 2Hp.
Main Motor 10 Hp. AC Vector Drive
Floor Space Right To Left 101 "
Floor Space Front To Back 40"
Machine Height 86"
Machine Weight 2,800 Lbs.
Blade Tension: Hydraulic Yes
Blade Guide: Roller Guides with Carbide Inserts Yes
Voltage:
575-60-3 Order Number 0010833
208-60-3 Order Number 0010830
230-60-3 Order Number 0010831
460-60-3 Order Number 0010832

*Prices and specifications subject to change without notice:
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description.......................................Order Number....Price
Manual Length Stop Assembly.......................0056707.........$450.00
Air Vise, With Hold-down Combined.................056787..........$5,300.00
Air Vise, Manual..................................0056707.........$300.00
Discharge Worktable, 20" X 48" L with Stock Stop..0053201.........$2,900.00
Discharge Worktable, 24" X 48" L with Stock Stop..0056045.........$3,500.00
Work Light, Wired In..............................0053231.........$5,200.00
High Speed Drive & Guides (1"Blade) 400-3000 SFPM 0056699.........$7,550.00
Free Standing Roller Stock Conveyors, 6" Centers
21" X 5' X 5,000 lbs. Cap. Distributed Weight.....0050247.........$1,475.00
21" X 10' X 10,000 lbs. Cap. Distributed Weight...0050250.........$2,675.00
24" X 5’ X 5,000 lbs. Cap. Distributed Weight.....0050267.........$1,825.00
24" X 10’ X 10,000 lbs. Cap. Distributed Weight...0050268.........$3,250.00
21" X 10' Electronic Powered Conveyor, Hydraulic..0056202.........$10,350.00
24" X 10' Electronic Powered Conveyor, Hydraulic..005674..........$11,300.00

Consult Factory For Additional Accessories
*Prices and specifications subject to change without notice.
MADE IN USA
