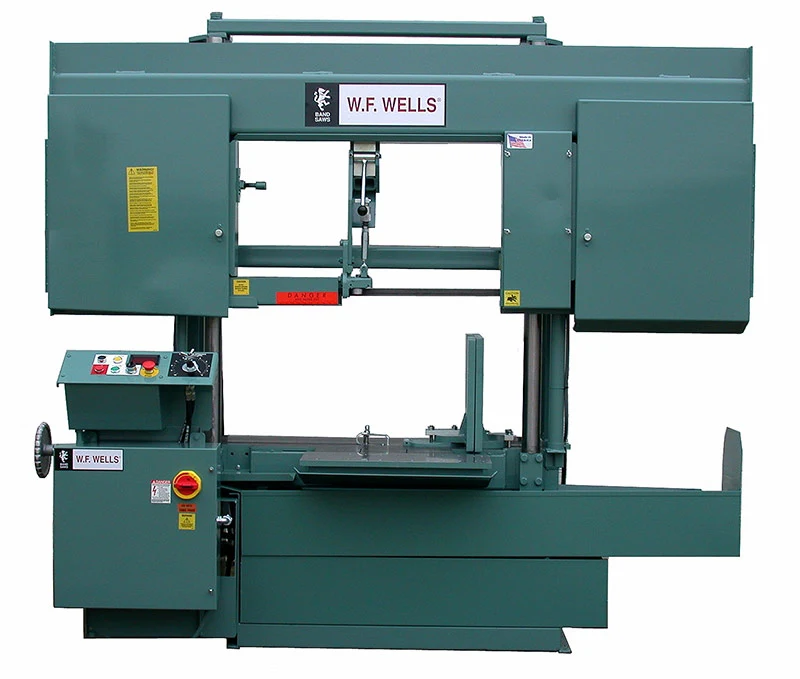

W.F. Wells Model H-2024-1 20"X24" Horizontal Saw

Maximum Capacity Round...................................20"
Maximum Capacity Rectangular.............................24"
Maximum Capacity @ 90 Degrees............................20"X24"
Work Height..............................................26"
Blade Wheel Size.........................................20"
Blade Size...............................................1-1/4" X .042 X 17'8"
Blade Speed..............................................60 To 500 SFPM
Sawing Force.............................................30 To 120 Lbs.
Vise Manual..............................................15"
Coolant Capacity.........................................15 Gallons
Hydraulic Capacity.......................................3/4 Gallon
Hydraulic Motor..........................................1/3 Hp.
Main Motor AC Vector Drive...............................7.5 Hp.
Floor Space Right To Left................................101 "
Floor Space Front To Back................................40"
Machine Height...........................................86"
Machine Weight...........................................2,800 Lbs.
Blade Guide: Rollers and Carbide Side Blocks.............Yes
Blade Tension: Manual with Indicator.....................Yes
Voltage:
208-60-3 Order Number....................................0010815
230-60-3 Order Number....................................0010816
460-60-3 Order Number....................................0010817
575-60-3 Order Number....................................0010818

*Prices and specifications subject to change without notice:
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description.......................................Order Number....Price
Manual Length Stop Assembly.......................0056707.........$475.00
Discharge Worktable, 20" X 48" L with Stock Stop..0053201.........$3,050.00
Discharge Worktable, 24" X 48" L with Stock Stop..0056045.........$3,675.00
Work Light, Wired In..............................0052021.........$375.00
Air Vise, With Hold-down Combined.................056787..........$5,575.00
Air Holddown, Manual..............................0056789.........$3,250.00
Blade Break/Stall Switch..........................0056040.........$675.00
Electronic Chip Conveyor, Auger Style.............0053231.........$5,475.00
High Speed Drive & Guides (1"Blade) 400-3000 SFPM 0056699.........$7,950.00
Free Standing Roller Stock Conveyors, 6" Centers
21" X 5' X 5,000 lbs. Cap. Distributed Weight.....0050247.........$1,850.00
21" X 10' X 10,000 lbs. Cap. Distributed Weight...0050250.........$2,875.00
24" X 5’ X 5,000 lbs. Cap. Distributed Weight.....0050267.........$3,250.00
24" X 10’ X 10,000 lbs. Cap. Distributed Weight...0050268.........$4,250.00
24" X 10' Electronic Powered Conveyor, Hydraulic..0010749.........$11,875.00

Consult Factory For Additional Accessories
*Prices and specifications subject to change without notice.
MADE IN USA
