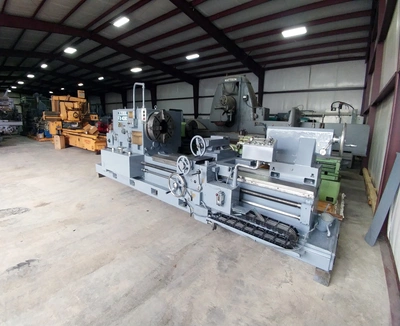

40" X 80" Yuasa Hollow Spindle Lathe With 9" Spindle Bore

Swing Over Bed Ways.................................42"
Swing Over Cross Slide..............................27"
Cross Slide Travel..................................27.16"
Compound Rest Travel................................11.81"
Bed Way Width.......................................29.52"
Distance From Floor To Spindle Center...............46.65"
Center Distance.....................................80"
Spindle Hole........................................9.125"
Spindle Speeds......................................10 To 350 Rpm's
Spindle Nose........................................A 15
Chuck Size ( 2 ) With 9.5 Holes.....................24" 4 Jaw
Feeds Cross.........................................0.00112 To .0627
Feeds Long..........................................0.00193 To .1066
Threads Inch........................................1 To 56 TPI
Threads Metric......................................1 To 14 MM
Tail Stock Quill Diameter...........................5.51"
Tail Stock Quill Travel.............................13"
Tail Stock Taper....................................# 5 Morse
Main Motor..........................................25 Hp.
Floor Space.........................................R-L 14' X F-B 72"
Height..............................................84"
Weight..............................................30,000 Lbs.
Chip Pan............................................Yes
Taper Attachment....................................Yes
Thread Dial.........................................Yes
Rapid Traverse......................................Yes

Note:
Machine has been cleaned, painted and cycled.
