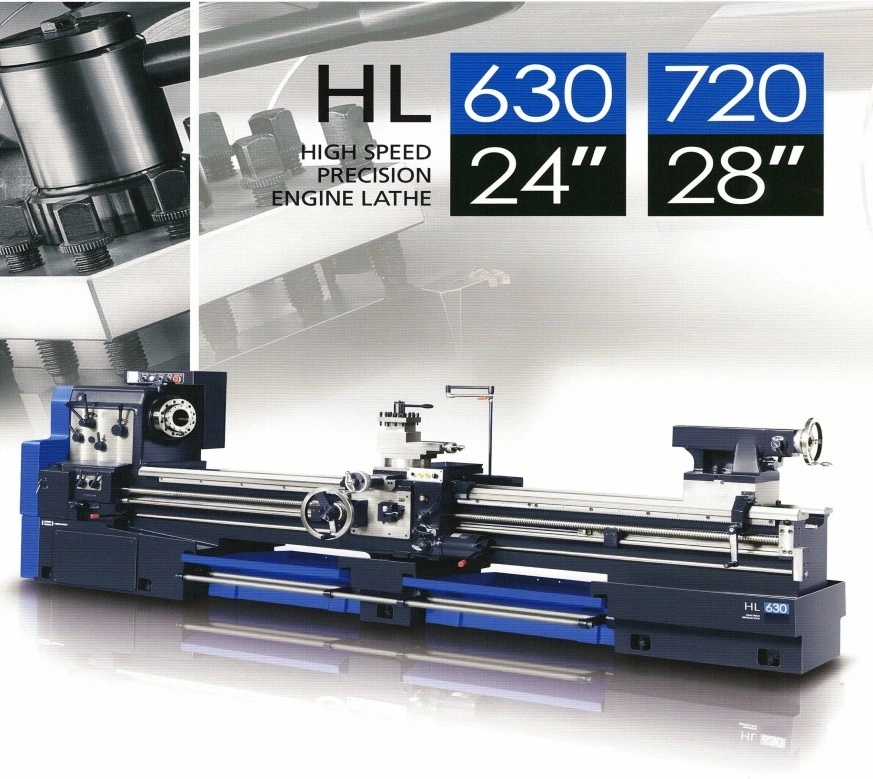

28" X 78" Whacheon Engine Lathe HL 720
Have one to sell?
ConditionNew
New
28" X 78" Whacheon Engine Lathe HL 720
Machine Is New, Please Call For Price And
Availability
Swing Over Bed Ways.......................................24.8"
Swing Over Cross Slide....................................14.9"
Bed Width.................................................20"
Cross Slide Travel........................................15.35"
Compound Rest Travel......................................6.69"
Center Distance...........................................78.5"
Spindle Hole..............................................3-1/32"
Spindle Speeds............................................27 To 1,205 Rpm's
Spindle Nose..............................................D-1-8
Chuck Size................................................No
Feeds Cross...............................................0.0010 To 0.029 I.P.R.
Feeds Long................................................0.0015 To 0.043 I.P.R
Threads Inch..............................................2 To 56 T.P.I.
Threads Metric............................................5 To 14 MM
D.P.......................................................4 To 56 T.P.I.
Module....................................................1 To 7 T.P.I.
Tail Stock Quill Diameter.................................3-1/4"
Tail Stock Quill Travel...................................6"
Tail Stock Taper..........................................# 5 Morse
Main Motor................................................15 Hp.
Machine Dimension.........................................R-L 190"X F-B 60"
Machine Height............................................60"
Weight....................................................9,797 Lbs.
Coolant Pan...............................................Yes
Thread Dial...............................................Yes
Hardened And Ground Ways..................................Yes
Optional:
Follow Rest 1.5" To 5"....................................$825.00
Oversized Steady Rest (11"X 17")..........................$3,700.00
Telescopic Taper Attachment...............................$5,825.00
Telescopic Taper Attachment Installation..................$750.00
Newall D.R.O. 2 Axis(12"X12")............................ $5,795.00
Installation Of D.R.O.....................................$750.00
BTC 20" 3-Jaw D1-8........................................$4,995.00
BTC 20" 4-Jaw D1-8........................................$2,545.00
Note:
Delivery is 120 to 160 days after receipt of order and down payment of 30%.
Features
Number(12 steps) and range of speeds of this lathe is so created that the most suitab le cutting speed may be given to any size of workpiece diameter within the possible range of cutting size, namely, within the range of swing over bed.
The main spindle is supported at three points by precision bearings and its hole is generously sized.
Automatic forced lubrication system supplies lubricant to every slidingway and driving mechanism inside the headstock.
By lubricating device installed inside apron, automatic lubrication is provided between carriage slideways and bedways.
An adjustable carriage feed stop dog is provided on bed as well as a positive micrometer stop.
The machine is equipped with an overload safety device for feeding and thread cutt ing.
Cross feed screws are always supplied a proper quantity of grease more than one time per a week for maintaining smooth travel under maximum accuracy.
Bed is so designed to prevent torsion, side-wall is double wall and rib type.
Hardened and ground bedways are made of high tensile cast iron. Produced under the license of Meehanite Know-How.
Lower portions of bed casting are box-shaped and are full length, forming the legs, chip pan and coolant reservoir.
The hydraulic disk brake provides safe quick braking of the spindle without generation of heat in the headstock.
Standard Accessories:
Center sleeve
Change gear 78T
Face plate (0550)
Installation block
Coolant equipment
Tool kits & box
Carbide center MT #5
Worm gear (14T, 19T, 20T, 24T)
Steady rest (Standard · 6" -11 ")
Carriage micro stopper
Driving plate (0330)
Face plate (0635)
Optional Accessories:
Follow rest (1.5" -5")
Live center
Change gear (65T, 157T)
Taper Attachment
Roller type. 6"-11")
Tailstock quill reduction equipment
Steady rest (Over size · 11"-17",
Follow rest (1.5" -5")
