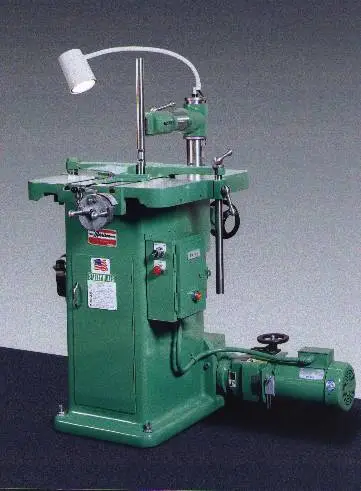

New Morrison Model K 1-1/4" Mechanical Keyseater

Table Size....................................24" X 27"
Table Height From Floor.......................36"
Table Tee Slots...............................4" From Center
Cuts Key Ways.................................1/16" To 1-1/4"
Maximum Length Of Key Ways....................9"
Strokes Per Minute............................Adjustable 15 To 40
Number Of Feed................................0.002, 0.004 & 0.006
Largest Diameter Of Cutter Bar................1-1/4"
Distance From 1' Cutter To Column.............16-1/4"
Maximum Distance Under Standard Clamp.........25-1/2"
Main Motor....................................2 Hp.
Floor Space...................................36" X 48" X 54" High
Shipping Weight...............................1,400 Lbs.
Automatic Table Stops.........................2
Standard Equipment Included.
2 Hp 60 Hz. 240 / 480VAC Motor................Yes
Heavy Duty Variable Frequency Drive...........Yes
Centering Vee And Holding Clamp Bar...........Yes
Crating charge for all machines...............$250.00 Included In Price

Options Not Include In Price:
Prices Subject To Change Without Notice:
1/4" Cutter Bar Max. length Of Keyway in
5-1/2" From Table.............................$535.95
3/4" Cutter Bar Max. length Of Keyway in
6-1/2" From Table.............................$572.31
1" Cutter Bar Max. length Of Keyway in
9" From Table.................................$582.25
1-1/4" Cutter Bar Max. length Of Keyway in
9" From Table.................................$590.63
Special Cutter Bar For 14" Keyway.............$811.68
Special Broaching Packing.....................$979.35
Taper Attachment..............................$2,901.70
Kool Guard Light..............................$148.00
