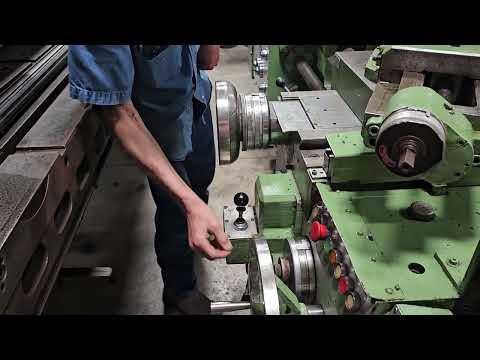

34" X 100" Used Broadbent Hollow Spindle Engine Lathe

Swing Over Bed Ways.........................................34"
Swing Over Cross Slide......................................20"
Swing In Gap................................................56"
Length Of Gap...............................................17"
Center Distance.............................................100"
Spindle Hole................................................16-1/4"
Spindle Speeds..............................................4 To 350 Rpm's
Chuck Size With 16-1/4" Hole Front..........................30" 4 - Jaw
Feeds Cross ................................................0.050 To 1.575 IPR
Feeds Long .................................................0.101 To 3.101 IPR
Threads Inch................................................4 To 96 TPI
Threads Metric..............................................1 To 28 TPI
Tail Stock Quill Diameter...................................4"
Tail Stock Quill Travel.....................................10"
Tail Stock Taper............................................# 5 Morse
Floor Space Length & Width..................................R-L 16' X F-B 60"
Machine Height..............................................72"
Weight......................................................25,000 Lbs.
Main Motor..................................................30 Hp.
Steady Rest.................................................12-1/2"
Chip Pan....................................................Yes
Taper Attachment............................................Yes
Thread Dial.................................................Yes
6-Way Rapid Traverse........................................Yes
Coolant.....................................................Yes
Note As Taken From Services. Machine will be cleaned and cycled.
Note As Taken From Services. Machine will be cleaned and cycled.
Missing the dog stops for the Longitudinal rapid return on the fast threading.
