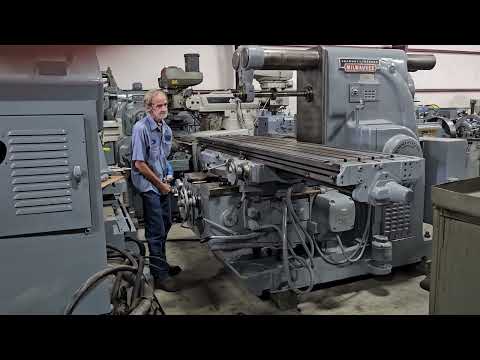

19-1/2" X 96" Used K & T Horizontal Milling Machine
Table Size.........................................19-1/2" X 96"
Table Travel.......................................48"
Table Cross Travel.................................18"
Table Swivel Right Left............................47 Degrees
Spindle Taper......................................50"
Knee Travel Up & Down..............................21"
Spindle Speeds.....................................15 To 1,500 Rpm's
Spindle To Table Min / Max.........................6-3/4" / 24-1/2"
Saddle And Table Feeds.............................3/8 To 90 I.P.M.
Rapids Long. & Cross...............................150 I.P.M.
Rapids Knee........................................37-1/2 I.P.M.
Main Motor.........................................30 Hp. 220 / 440 / 3
Floor Space........................................R-L 108" X F-B 110"
Height.............................................84"
Weight.............................................24,000 Lbs.
Coolant............................................Yes
Note: Machine has been cleaned, painted and cycled.
