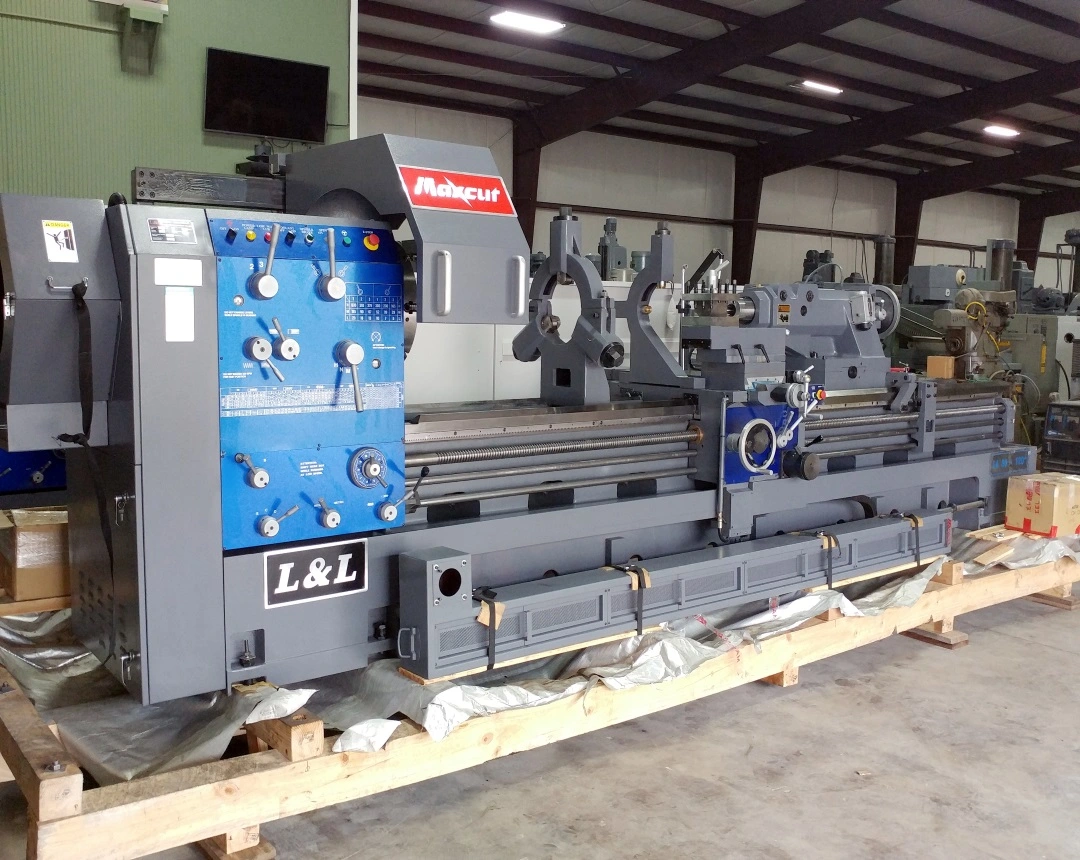

33" X 120" New L&L Heavy Duty Engine Lathe With 6" Hole
Have one to sell?
ConditionNew
New
33" X 120" New L&L Engine Lathe With 6"Spindle Bore
L&L MACHINERY INDUSTRY CO. LTD, a professional high-precision lathe manufacturing company with its self-developed logo L&L, was founded in 1991. Based on the sustained family business and profound knowledge in technology, L&L has created its superior LA series of manual lathes. Our heavy duty lathes are developed to furnish optimum performance required by a wide range of industries, including the general machining industry, mining industry, shafts, pattern and roller manufacturing, power utilities, as well as the petroleum industry. All the machines have been designed to meet the strictest requirements of our customers and have obtained a distinguished reputation around the world. In addition to the best quality lathes, we possess innovative R&D teams, experienced staff, as well as a complete after-sales service system. We hold the belief to provide the most precise, innovative and quality-assured lathes for our esteemed customers and regard the belief to be our ultimate goal.
L&L Heavy Duty Engine Lathe
Swing Over Bed Ways.....................................33"
Swing Over Cross Slide..................................19.2"
Swing In Gap............................................40.8"
Center Distance.........................................120"
Bed Way Width...........................................20"
Chuck Size..............................................24" 4-Jaw Front
Chuck Size..............................................16" 3-Jaw Rear
Spindle Hole............................................6"
Spindle Taper...........................................# 5 Morse
Compound Rest Travel....................................11.8"
Spindle Speeds (18 Steps)...............................7 To 700 Rpm's
Spindle Nose............................................A-2-11
Feeds Cross.............................................0016 To .048 I.P.R.
Feeds Long..............................................0.0032 To .096 I.P.R.
Threads Inch (70).......................................0.25 - 30 T.P.I.
Threads Metric (62).....................................1-120 MM
D.P. (70)...............................................1-120 MM
Module (53).............................................0.025-30 T.P.I.
Rapid Traverse Z Axis...................................18.5 I.P.M.
Rapid Traverse X Axis...................................18.5 I.P.M.
Ball Screw Diameter Z Axis..............................0.984"
Ball Screw Diameter X Axis..............................1.968"
Tail Stock Quill Diameter ..............................6"
Tail Stock Taper........................................# 6 Morse
Main Motor..............................................20 Hp.
Machine Dimension.......................................197"Long. X 60" Wide
Height..................................................72"
Weight..................................................19,864 Lbs.
Steady Rest Roller Type.................................1.8" To 11.8"
Follow Rest.............................................1.18" To 9"
4- Way Rapid Traverse...................................Yes
Foot Brake..............................................Yes
Coolant Pan.............................................Yes
Thread Dial.............................................Yes
Hardened And Ground Ways................................Yes
Telescopic Taper Attachment.............................Yes
Rear Splash Guard.......................................Yes
Newall Digital Readout Two Axis.........................Yes Included
Aloris Type Tool Post
With 3 Turning & 2 Boring Holders.......................Yes Included
Optional: (Prices Subject To Changes Without Notice)
Gator Chuck Size 20" 4-Jaw With 7.1 Thru Hole 2 Piece
Top Jaws Heavy Duty Oil Country.........................$11,400.00
Adaptor Plate Mount For Rear Chuck, Price...............$2,450.00
Newall 2 Axis D.R.O. System.............................$8,450.00
Aloris Type Tool Post & 5 Holder........................$3,950.00
Note: Delivery is 120 to 145 days after receipt of purchase order and
down payment.
L&L MACHINERY INDUSTRY CO. LTD, a professional high-precision lathe manufacturing company with its self-developed logo L&L, was founded in 1991. Based on the sustained family business and profound knowledge in technology, L&L has created its superior LA series of manual lathes. Our heavyduty lathes are developed to furnish optimum performance required by a wide range of industries, including the general machining industry, mining industry, shafts, pattern and roller manufacturing, power utilities, as well as the petroleum industry. All the machines have been designed to meet the strictest requirements of our customers and have obtained a distinguished reputation around the world. In addition to the best quality lathes, we possess innovative R&D teams, experienced staff, as well as a complete after-sales service system. We hold the belief to provide the most precise, innovative and quality-assured lathes for our esteemed customers and regard the belief to be our ultimate goal.
