18" X 60" New Webb Engine Lathe Model MA-1860 G

18" X 60" New Webb Engine Lathe With Gap
Swing Over Bed Ways.....................................18.1"
Swing Over Cross Slide..................................11.4"
Swing In Gap............................................25.1"
Center Height...........................................9.05"
Center Distance.........................................60"
Spindle Hole............................................2"
Cross Slide Travel......................................11"
Compound Rest Travel....................................4.7"
Spindle Speeds..........................................39 To 2,800 Rpm's
Spindle Nose............................................D-1-6
Feeds Cross.............................................0.03 To 0.44 I.P.R.
Feeds Long..............................................0.06 To 0.88 I.P.R.
Threads Inch............................................4 To 56 T.P.I.
Threads Metric..........................................0.05 To 7 MM
D.P.....................................................8 To 112 T.P.I.
Module..................................................0.05 To 3.5 T.P.I.
Tail Stock Quill Diameter...............................2.9"
Tail Stock Quill Travel.................................6.6"
Tail Stock Taper........................................# 5 Morse
Main Motor..............................................7.5 Hp. 220 / 440/
Machine Dimension.......................................110" L X 4'W
Machine Height..........................................67"
Weight..................................................4,960 Lbs.
Foot Brake..............................................Yes
Coolant Pan.............................................Yes
Thread Dial.............................................Yes
Hardened And Ground Ways................................Yes

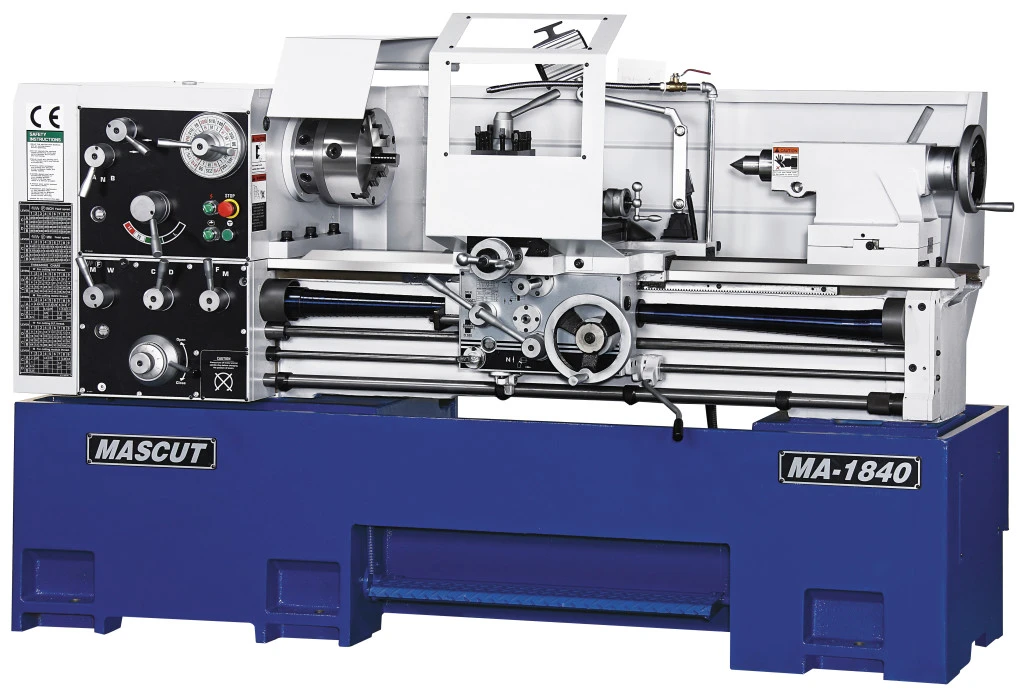

Note:The longitudinal hand wheel will be on the left
hand side of the apron, not the right hand side as shown
in the picture.
Machine Options Are Not Included In The Price:
All prices and specifications are subject to change without notice:
MA 18” Series Upgrade to 10 HP..........................$950.00
MA 18” Inverter Head with CSS and PLC for 7.5 HP........$5,940.00
MA 18” Series Steady Rest Roller type...................$680.00
MA 18/21” Rapid Traverse Motor on Apron.................$1,890.00
Follow Rest.............................................$575.00
5 Position Micrometer Carriage Stop.....................$490.00
Taper Attachment........................................$1,990.00
Installation of taper attachment........................$450.00
Quick Change Tool Post And 4 Tool Blocks................$1,125.00
Full Length Splash Guard 40” and 60” Centers Machine....$595.00
Full Length Splash Guard 80” and 120” Centers Machine...$795.00
Digital Read Outs – Acu-Rite and Newall
Newall 2 Axis Digital readout System ...................$4,850.00
Optional Chucks Number of Jaws / Description Retail Price
3-JAW 10” D-1-6 CAM LOCK MOUNT..........................$1,090.00
3-JAW 12” D-1-6 CAM LOCK MOUNT..........................$1,590.00
4-JAW 16” D-1-6 CAM LOCK MOUNT..........................$2,490.00
Gator Chucks
Chuck Size 12" 3-Jaw D-1-6 Cam Lock Mount...............$1,990.00
Chuck Size 16" 4-Jaw D-1-6 Cam Lock Mount...............$2,490.0
Gator Chuck Size 12" 3-Jaw with 2 piece jaws D-1-6
Cam Lock Mount Steel Body...............................$2,950.00
Gator Chuck Size 12" 4-Jaw with 2 piece jaws D-1-6
Cam Lock Mount Semi-Steel Body..........................$2,336.00
16” Face Plate D-1-6....................................$475.00
Voltage:
Rewire to 440V..........................................$450.00
Freight In From California Importer To Houston..........$2,350.00

All prices and specifications are subject to change without notice:
